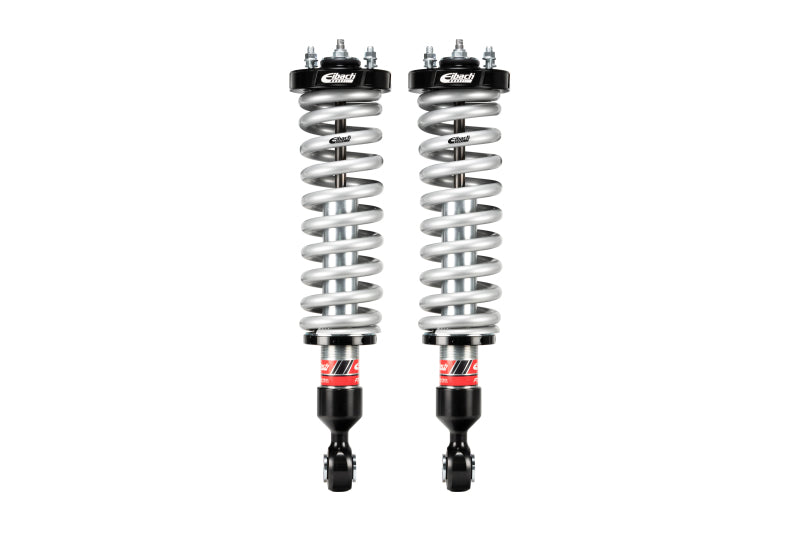

Eibach PRO-TRUCK COILOVER 2.0 Front Coilover Kit E86-82-096-01-20 for 2022-2025 Toyota Tundra

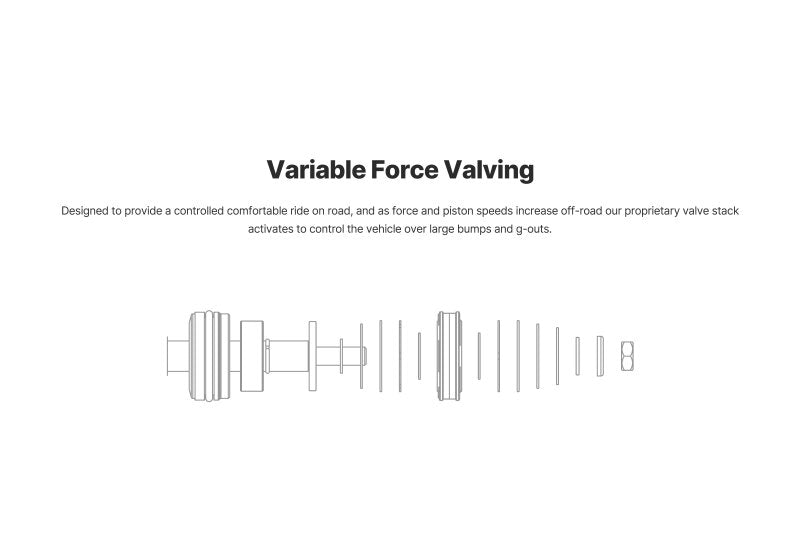

Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails. Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.

• Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Pre-Assembled, Factory Direct Replacement Front Coilover - No Additional Parts Required. Sold in Pairs.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Upgrade the front suspension of your 2022-2025 Toyota Tundra with the Eibach PRO-TRUCK COILOVER 2.0 Front Coilover Kit, part number E86-82-096-01-20. Designed around an extended-travel monotube platform and variable force valving, this kit delivers controlled handling during on-road driving while maintaining suspension compliance and tire contact on demanding trails. The front ride height is preset to level with the original-equipment rear spring. Additional preload adjustment is required when pairing the coilovers with Eibach rear springs for a level stance.
The Eibach PRO-TRUCK COILOVER 2.0 features an adjustable threaded spring perch that helps accommodate increased loads while maximizing clearance. It is equipped with an ERO Off-Road Race Spring and is compatible with Eibach race spring applications. Anodized 6061-T6 billet aluminum mounts provide strength and corrosion resistance, while the 46 mm piston and nitrogen-filled monotube damper use variable force valving to support consistent performance across changing terrain and driving conditions.
Each coilover is individually dyno tested for matched performance and reliability, and the heavy-duty bushing system is cycle tested for long-term durability. The front coilovers arrive pre-assembled as factory-direct replacement units, so no additional components are required for installation. The kit includes a pair of front coilovers and is engineered, tested, and manufactured by Eibach in the U.S.A. Application coverage includes select 2022, 2023, 2024, and 2025 Toyota Tundra models on the XK70 platform. Professional installation and alignment are recommended after installation.

Features:

• Extended-travel monotube design with nitrogen-filled variable force valving for controlled road manners and improved trail traction

• Adjustable threaded spring perch accommodates increased loads and provides additional clearance

• ERO Off-Road Race Spring equipped and compatible with Eibach race spring applications

• Anodized 6061-T6 billet aluminum mounts and a 46 mm piston provide durable, high-performance construction

• Individually dyno tested for matched performance and reliability

• Heavy-duty bushing system cycle tested for long-term durability

• Pre-assembled factory-direct replacement front coilovers require no additional parts

• Sold as a pair and engineered, tested, and manufactured by Eibach in the U.S.A.

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
