Eibach E86-82-105-01-22 Stage 2 Pro-Truck Lift Kit for 2024-2026 Toyota Tacoma

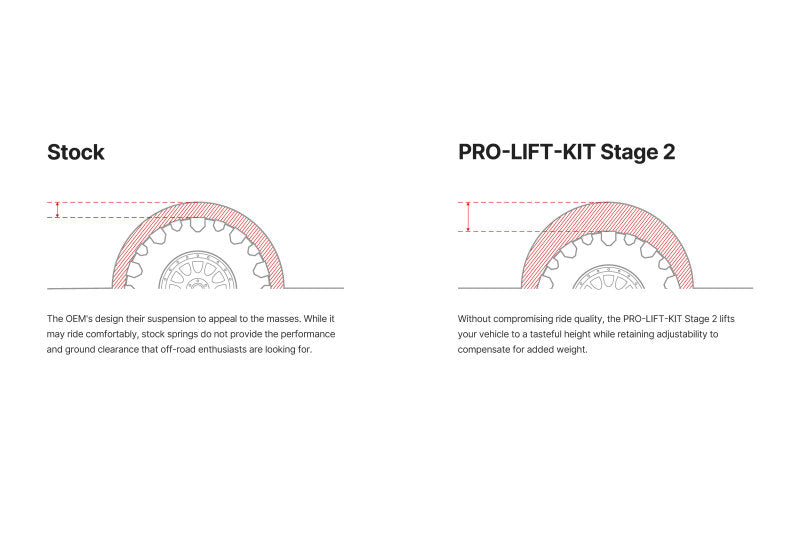

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.

• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Upgrade your 2024-2026 Toyota Tacoma with the Eibach E86-82-105-01-22 Stage 2 Pro-Truck Lift Kit, engineered to improve suspension control, ride quality, and off-road traction. This complete Stage 2 system combines front Pro-Truck-Coilover 2.0 units with rear sport shocks and Pro-Lift-Kit springs. The rear components share the proven configuration used in Eibach’s Stage 1 system, while the adjustable front coilovers provide greater flexibility for load changes, vehicle setup, and trail clearance.

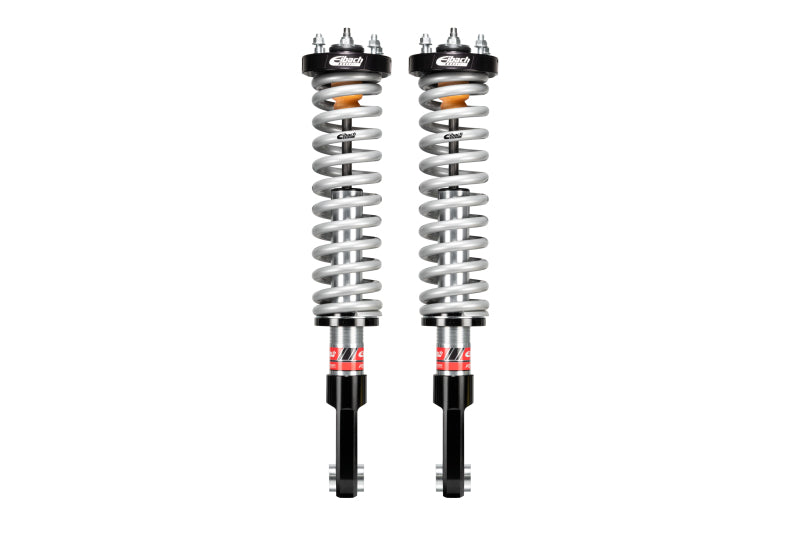

The front 2.0 coilovers use Eibach’s extended-travel monotube design with variable-force valving. This setup is tuned to provide controlled handling during on-road driving while maintaining compliance for improved traction on uneven terrain. The front ride height is preset to level with the original-equipment rear spring. Additional preload is required to achieve a level stance when used with Eibach rear springs. The adjustable threaded spring perch accommodates increased loads and allows added clearance, while remaining compatible with ERO Off-Road Race Springs.
Each coilover features an anodized 6061-T6 billet aluminum mount, a 46mm piston, and nitrogen-filled variable-force valving. Components are individually dyno tested for matched performance and reliability, and the heavy-duty bushing system is cycle tested for durability. Eibach engineers, tests, and manufactures the system in the U.S.A. This kit fits 2024, 2025, and 2026 Toyota Tacoma applications and includes the front coilovers, rear sport shocks, and rear lift springs needed for the Stage 2 configuration.

Features:

• Front adjustable threaded spring perch accommodates increased loads and maximum clearance

• Compatible with ERO Off-Road Race Springs

• Extended-travel 2.0 monotube coilover design with 46mm piston

• Nitrogen-filled variable-force valving for on-road control and off-road traction

• Anodized 6061-T6 billet aluminum coilover mounts

• Individually dyno tested for matched performance and reliability

• Heavy-duty bushing system is cycle tested for durability

• Stage 2 system includes Pro-Truck-Coilover 2.0 front units, rear sport shocks, and Pro-Lift-Kit rear springs

• Front height is preset to level with the original-equipment rear spring

• Additional preload is required to level the vehicle with Eibach rear springs

• Engineered, tested, and manufactured by Eibach in the U.S.A.

• Fits 2024-2026 Toyota Tacoma

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
2026 Toyota Tacoma
