Diode Dynamics DD8785 D-Switch 8-Channel Auxiliary Switch Panel for 2018-2025 Jeep Wrangler JL

Overview Upgrade your vehicles setup with the Diode Dynamics D-Switch! This advanced 8-channel switch panel gives you full control over any 12V accessory with four 30A and four 15A outputs, delivering serious power with unrivaled customization. Dedicated Backlight Channel. Unlike other 8-button controllers, the D-Switch includes a 9th button for the dedicated backlight bus bar, providing eight extra outputs for accent lighting. Activate all backlit accessories with a single press, freeing up main outputs for other functions. Dynamic Channel Assignment. Unlike one-to-one switch panels, the D-Switch allows multiple output channels per button, giving you complete control over your setup. You can also assign multiple functions of an output to different buttons, such as configuring one button for flashing and another for full power of the same light. Fast, Responsive Bluetooth App. Control and configure settings using the Bluetooth app for iOS and Android, which delivers instant response, no lag, and seamless programming. OEM Signal Integration. Three trigger wires are included to automatically activate your outputs with vehicle signals such as high beams, fog lights, or reverse lights. The ignition wire powers the controller when the vehicle starts, shutting it down automatically when turned off. The Night Mode wire adjusts output settings and controller brightness for low-light conditions. Solid-State, Durable Design. The D-Switch is built to withstand the toughest conditions, with a solid-state design and an IP67-rated aluminum heatsink for superior heat dissipation. No mechanical relays to wear out or physical fuses to replace! Whether for off-road lighting or other 12V accessories, the D-Switch offers unmatched power, customization, and reliability. Program and control multiple lights with one button. Dedicated button and bus connector for backlight. Fast responsive Bluetooth App to control and customize settings. Included in the box: One (1) Switch Panel Hub One (1) Switch Panel Controller One (1) Controller Universal Mounting Bracket One (1) 10-foot Controller Wiring Harness One (1) Trigger Wires + Night Mode Wiring Harness One (1) 3-foot 4AWG Battery Cable One (1) 3-foot 4AWG Ground Cable Two (2) Button Sticker Sheets Five (5) T-taps Six (6) Zip Ties One (1) D-Switch Hub Mount Double-sided tape Installation Hardware Installation & Programming Guide

• Three trigger wires for OEM-like control through vehicle signals.
• Fast responsive Bluetooth App - no lagging or loading screens!
• Solid-state fully-encapsulated design for extreme durability.
• Dedicated backlight channel to control your accent lighting.
• Group and control multiple outputs with a single button.

Upgrade your 2018-2025 Jeep Wrangler JL with the Diode Dynamics DD8785 D-Switch Kit, an advanced 8-channel controller designed to operate 12V accessories with flexible, high-capacity power management. The system includes four 30-amp outputs and four 15-amp outputs, allowing you to control off-road lighting, accent lights, compressors, radios, and other vehicle accessories from a single, convenient switch panel. Its solid-state construction eliminates mechanical relays and replaceable fuses for dependable operation in demanding environments.
The D-Switch provides dynamic channel assignment, allowing multiple outputs to be grouped under one button or separate functions to be assigned to different buttons. For example, one button can activate a light at full power while another controls a flashing mode. A dedicated ninth button and backlight bus bar provide centralized control for illuminated accessories, freeing the primary outputs for other equipment. The included Bluetooth app for iOS and Android enables fast, responsive programming and control without lag or loading screens.

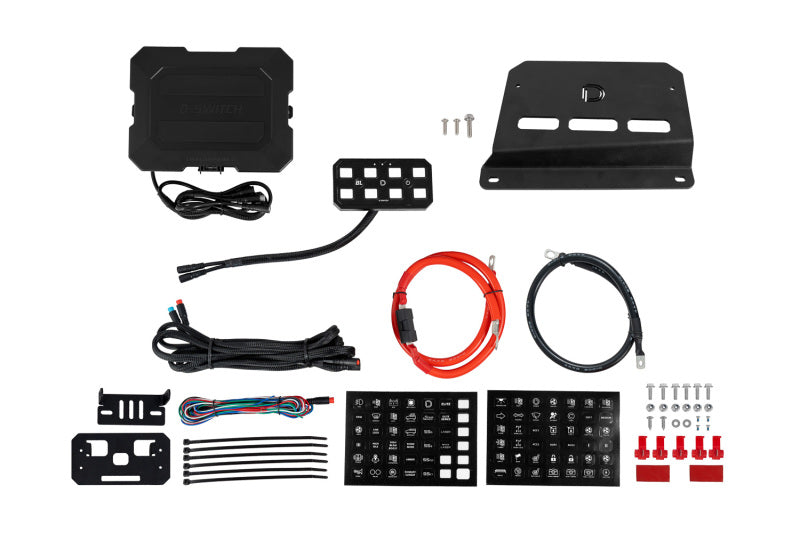

Three trigger wires support OEM-style integration with vehicle signals, including high beams, fog lights, and reverse lights. The ignition input powers the controller when the vehicle starts and shuts it down when the vehicle is turned off, while the Night Mode wire adjusts output behavior and controller brightness for low-light driving. An IP67-rated aluminum heatsink and fully encapsulated solid-state design help provide effective heat dissipation and long-term durability. The kit includes the switch panel hub, controller, universal mounting bracket, 10-foot wiring harness, trigger and Night Mode harness, battery and ground cables, button sticker sheets, T-taps, zip ties, hub mount, double-sided tape, installation hardware, and an installation and programming guide.

Features:

• Eight high-capacity outputs with four 30-amp channels and four 15-amp channels for 12V accessories

• Dedicated backlight channel and bus bar for centralized accent-lighting control

• Dynamic channel assignment allows multiple outputs to be controlled with one button

• Bluetooth app for iOS and Android provides fast, responsive setup and control

• Three trigger wires support OEM-style integration with high-beam, fog-light, and reverse-light signals

• Ignition and Night Mode inputs provide automatic operation and low-light brightness control

• Fully encapsulated solid-state construction eliminates mechanical relays and replaceable fuses

• IP67-rated aluminum heatsink supports effective heat dissipation and durable performance

• Designed for 2018-2025 Jeep Wrangler JL applications

Compatible With
2018 Jeep Wrangler
2019 Jeep Wrangler
2020 Jeep Gladiator
2020 Jeep Wrangler
2021 Jeep Gladiator
2021 Jeep Wrangler
2022 Jeep Gladiator
2022 Jeep Wrangler
2023 Jeep Gladiator
2023 Jeep Wrangler
2024 Jeep Gladiator
2024 Jeep Wrangler
2025 Jeep Gladiator
2025 Jeep Wrangler
2026 Jeep Wrangler
