Diode Dynamics D-Switch 8-Channel Controller Kit DD8782 for 2016-2023 Toyota Tacoma

Overview Upgrade your vehicles setup with the Diode Dynamics D-Switch! This advanced 8-channel switch panel gives you full control over any 12V accessory with four 30A and four 15A outputs, delivering serious power with unrivaled customization. Dedicated Backlight Channel. Unlike other 8-button controllers, the D-Switch includes a 9th button for the dedicated backlight bus bar, providing eight extra outputs for accent lighting. Activate all backlit accessories with a single press, freeing up main outputs for other functions. Dynamic Channel Assignment. Unlike one-to-one switch panels, the D-Switch allows multiple output channels per button, giving you complete control over your setup. You can also assign multiple functions of an output to different buttons, such as configuring one button for flashing and another for full power of the same light. Fast, Responsive Bluetooth App. Control and configure settings using the Bluetooth app for iOS and Android, which delivers instant response, no lag, and seamless programming. OEM Signal Integration. Three trigger wires are included to automatically activate your outputs with vehicle signals such as high beams, fog lights, or reverse lights. The ignition wire powers the controller when the vehicle starts, shutting it down automatically when turned off. The Night Mode wire adjusts output settings and controller brightness for low-light conditions. Solid-State, Durable Design. The D-Switch is built to withstand the toughest conditions, with a solid-state design and an IP67-rated aluminum heatsink for superior heat dissipation. No mechanical relays to wear out or physical fuses to replace! Whether for off-road lighting or other 12V accessories, the D-Switch offers unmatched power, customization, and reliability. Program and control multiple lights with one button. Dedicated button and bus connector for backlight. Fast responsive Bluetooth App to control and customize settings. Included in the box: One (1) Switch Panel Hub One (1) Switch Panel Controller One (1) Controller Universal Mounting Bracket One (1) 10-foot Controller Wiring Harness One (1) Trigger Wires + Night Mode Wiring Harness One (1) 3-foot 4AWG Battery Cable One (1) 3-foot 4AWG Ground Cable Two (2) Button Sticker Sheets Five (5) T-taps Six (6) Zip Ties One (1) D-Switch Hub Mount w/ Support Bracket Double-sided tape Installation Hardware Installation & Programming Guide

• Three trigger wires for OEM-like control through vehicle signals.
• Fast responsive Bluetooth App - no lagging or loading screens!
• Solid-state fully-encapsulated design for extreme durability.
• Dedicated backlight channel to control your accent lighting.
• Group and control multiple outputs with a single button.

Upgrade your 2016-2023 Toyota Tacoma with the Diode Dynamics D-Switch Kit, part number DD8782. This advanced 8-channel switch panel provides centralized control for 12V automotive accessories, including off-road lighting, accent lights, compressors, and other auxiliary equipment. The system features four 30-amp outputs and four 15-amp outputs, giving you flexible power management for a wide range of vehicle accessories.

The D-Switch uses dynamic channel assignment, allowing multiple outputs to be controlled with a single button and enabling different functions to be assigned to separate buttons. A dedicated backlight channel and bus connector provide convenient control of accent lighting without using the primary output channels. The included controller also features a fast Bluetooth app for iOS and Android, allowing you to configure and control the system with responsive, user-friendly programming.

Three trigger wires provide OEM-style signal integration for functions such as high beams, fog lights, and reverse lights. An ignition wire automatically powers the controller when the vehicle starts and shuts it down when the vehicle is turned off, while the Night Mode wire adjusts output settings and controller brightness for low-light operation. The solid-state, fully encapsulated design eliminates mechanical relays and replaceable fuses, while the IP67-rated aluminum heatsink supports reliable heat dissipation in demanding conditions.

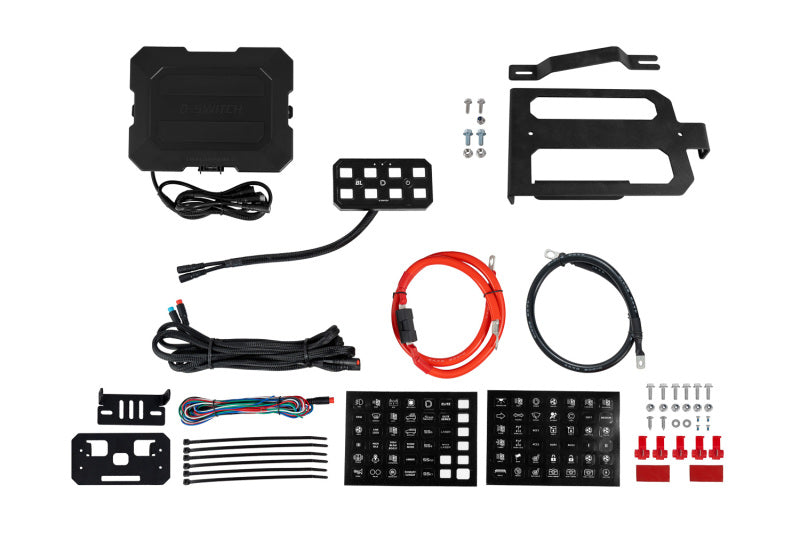

The Diode Dynamics DD8782 kit includes the switch panel hub, controller, universal mounting bracket, controller wiring harness, trigger and Night Mode wiring harness, battery and ground cables, button sticker sheets, T-taps, zip ties, hub mount with support bracket, double-sided tape, installation hardware, and an installation and programming guide. Designed for a clean, customizable installation, this D-Switch Kit offers durable and versatile accessory control for compatible Toyota Tacoma applications.

Features:

• Three trigger wires for OEM-style control through vehicle signals
• Fast, responsive Bluetooth app for iOS and Android control and programming
• Four 30-amp outputs and four 15-amp outputs for flexible 12V accessory management
• Solid-state, fully encapsulated design for enhanced durability
• Dedicated backlight channel and bus connector for accent lighting
• Dynamic channel assignment for grouping multiple outputs with one button
• Night Mode input for low-light output and controller brightness adjustments
• IP67-rated aluminum heatsink for effective heat dissipation
• Includes switch panel hub, controller, wiring harnesses, mounting hardware, and installation guide

Compatible With
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
