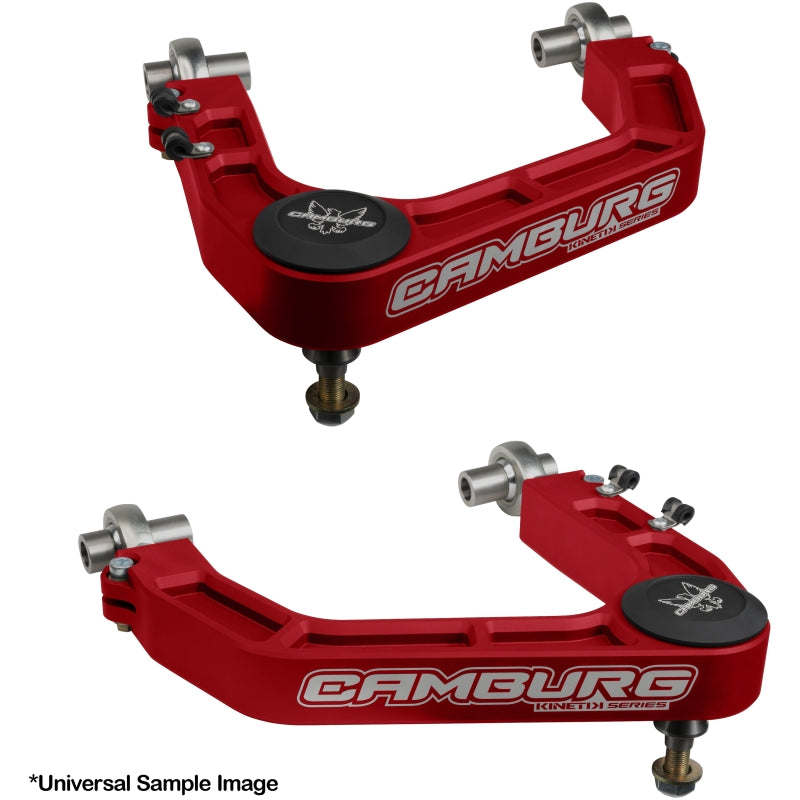

Camburg KINETIK V2 Billet Uniball Upper Control Arms for Toyota Tundra and Sequoia, CAM-310189-RED

Our 22'-25' Tundra, 23'-25' Sequoia KINETIK Series billet upper control arms allow for increased wheel travel and articulation out on the trail, corrected suspension geometry with increased caster for improved handling both on and off-road and are considerably higher quality and higher strength compared to the OEM parts for off-road use. These arms have undergone extensive CAD designing and machining to meet our high standards. They are CNC machined in-house from aerospace quality 6061 billet aluminum, Type II anodized and laser etched. We utilize a larger FK 1.25" uniball with a military grade PTFE internal liner for increased strength, longevity and higher misalignment, allowing for maximum wheel travel. The uniball is adapted to the spindle/knuckle using model specific spacers machined from heat-treated stainless steel, for a precision fit without the need for drilling or modifications. The 1.25" uniball allows for a larger and stronger 12-point bolt with a low-profile press-on uniball cap to resist the elements. Additional camber and caster adjustment is available with the use of larger and stronger FK 7/8" chromoly heim joints, which also eliminate flexing/deflection under hard use and heavy braking without binding. Step by step instructions with all the necessary hardware ensure a successful installation for your next off-road adventure. Camburg KINETIK Series Uniball Upper Control Arm Kit Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Superior design and components used for the ultimate strength
• Corrects suspension geometry for improved handling
• Designed for maximum wheel travel and articulation
• Eliminates weak factory ball-joints

Upgrade the front suspension of your 2022–2025 Toyota Tundra or 2023–2025 Toyota Sequoia with the Camburg KINETIK V2 Performance Billet Uniball Upper Control Arm Kit, part number CAM-310189-RED. Designed for 2WD and 4WD applications, these upper control arms increase wheel travel and suspension articulation while correcting factory suspension geometry. Increased caster helps improve handling both on and off the road, making this kit a dependable upgrade for demanding trail use and hard driving conditions.
Camburg CNC machines each arm in-house from aerospace-quality 6061 billet aluminum, then applies a Type II anodized finish with laser-etched details. A large FK 1.25-inch uniball with a military-grade PTFE internal liner provides increased strength, durability, and misalignment capability for maximum suspension movement. Model-specific, heat-treated stainless steel spacers create a precise fit at the spindle or knuckle without drilling, cutting, or other permanent modifications. The low-profile press-on uniball cap helps protect the assembly from harsh environmental exposure, while the larger 12-point hardware is engineered for secure installation and reliable off-road performance.
Additional camber and caster adjustment is provided by FK 7/8-inch chromoly heim joints. These joints help eliminate flex and deflection under heavy braking or aggressive driving while maintaining smooth movement without binding. Step-by-step installation instructions and the necessary hardware are included to support a straightforward installation. Depending on wheel size, offset, backspacing, tire size, and suspension setup, trimming the plastic inner fenders or modifying body mounts behind the front tires may be necessary to prevent tire rubbing.

• Superior design and components used for increased strength and durability
• Corrects suspension geometry for improved handling
• Designed to maximize wheel travel and articulation
• Eliminates weak factory ball joints

Features:

• CNC-machined from aerospace-quality 6061 billet aluminum

• Type II anodized red finish with laser-etched details

• Large FK 1.25-inch uniball with a military-grade PTFE liner

• Heat-treated stainless steel spindle and knuckle spacers provide a precision fit

• FK 7/8-inch chromoly heim joints provide adjustable camber and caster

• Corrects suspension geometry and increases caster for improved handling

• Supports increased wheel travel and off-road articulation

• Includes installation hardware and step-by-step instructions

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
