Camburg CAM-320006 Toyota Tundra Bolt-On Rear FOX Bump Stop Mount Kit, 2WD/4WD, 2007-2021

$425.00

Skip to product information
1 of 10

Regular price $425.00
Sale price $425.00 Regular price $425.00
Shipping calculated at checkout.

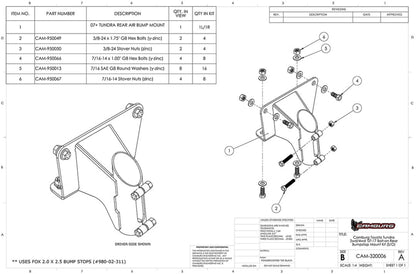

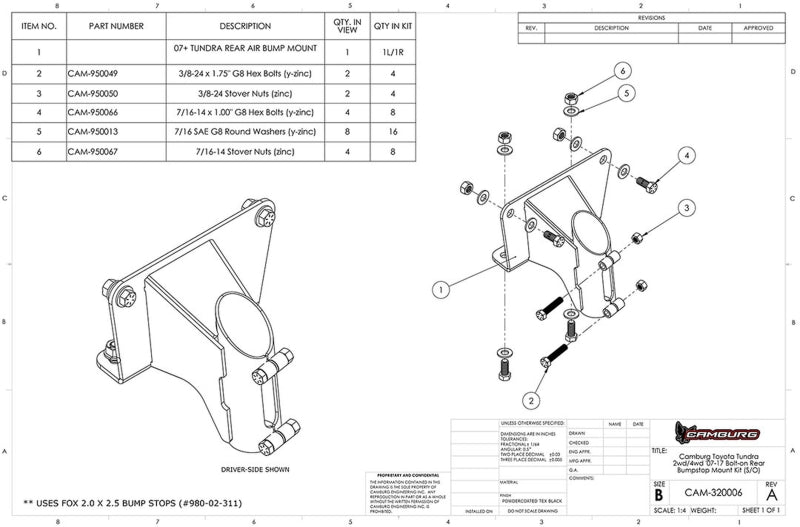

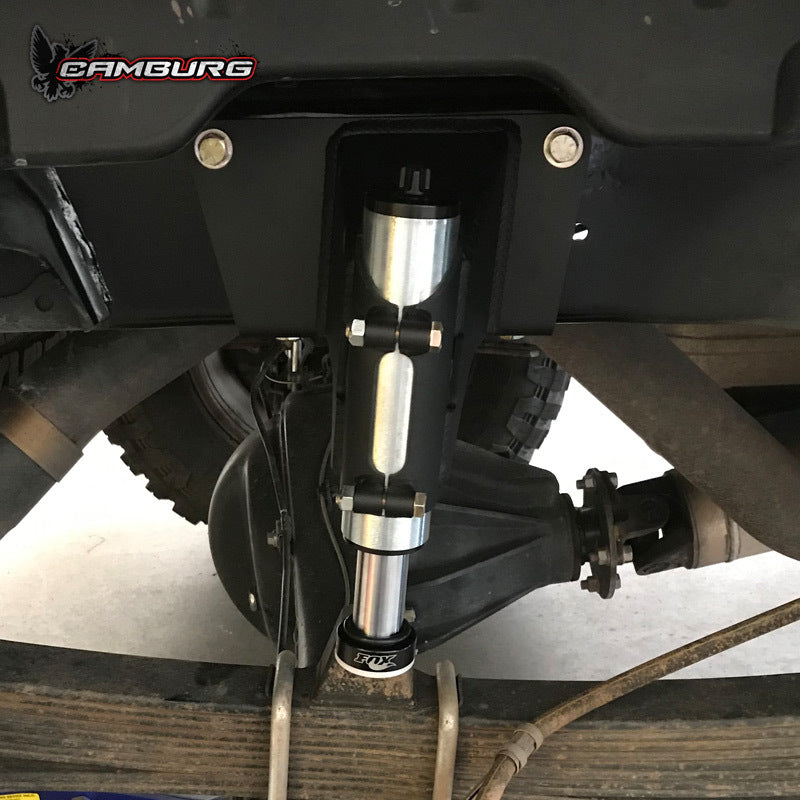

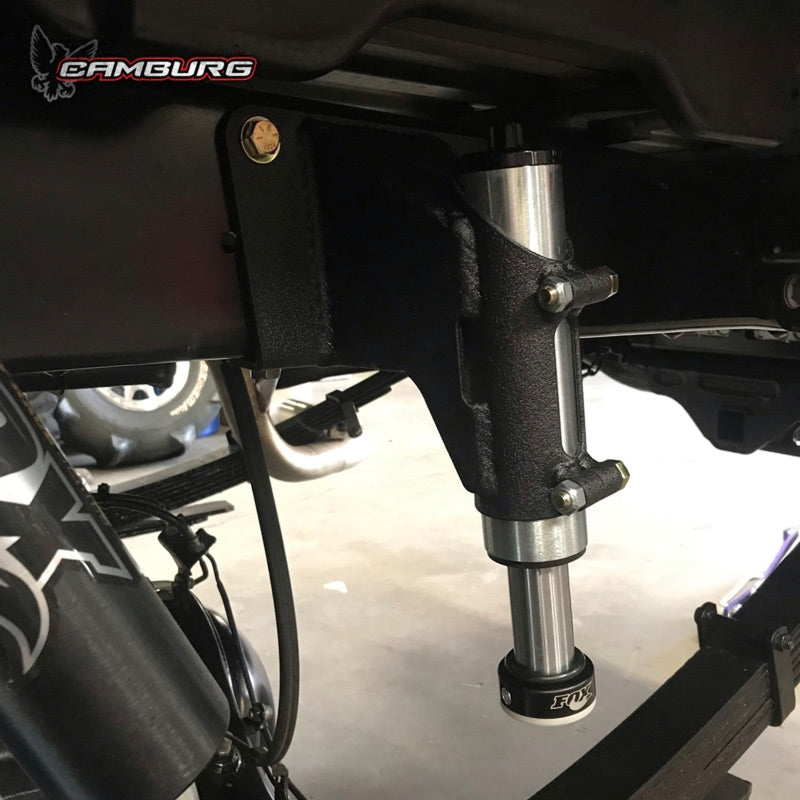

Our Camburg bump stop mounts bolt onto the rear of your 2007-2021 Toyota Tundra with ease. These are designed to use FOX 2.0 x 2.5 hydraulic bump stops with Deaver K-37/U-748 spring-over leaf springs or the equivalent. They will work with the stock leaf springs, though we highly recommend running Deaver springs. They provide additional bottom out control to maximize the vehicles entire suspension travel. They are MIG welded, powder coated wrinkle black and include all the necessary Grade 8 hardware. These bolt into existing holes in the frame once the factory bump stop mounts are removed, so there is no guess work on placement. You will need to remove the stock bump stop mounts on the frame that are riveted on, so grinding/drilling is involved with that process. Once removed, our mounts bolt right on. Camburg Toyota Tundra 2wd/4wd '07-21 2.00" Spring Over Bolt-on Rear Bump Stop Mount Kit Only Need further assistance? Call 1-714-848-8880.
  • Additional Bottom Out Control
  • Includes Hardware
  • CNC laser cut

Improve rear suspension control on your 2007-2021 Toyota Tundra with the Camburg CAM-320006 bolt-on rear bump stop mount kit. Designed for 2WD and 4WD applications, this mount kit is engineered to work with FOX hydraulic bump stops and spring-over leaf spring setups using Deaver K-37, U-748, or equivalent springs. The mounts provide additional bottom-out control, helping maximize usable suspension travel during demanding off-road driving and heavy suspension compression events. The kit includes the mounts and required installation hardware; FOX bump stops and leaf springs are not included.

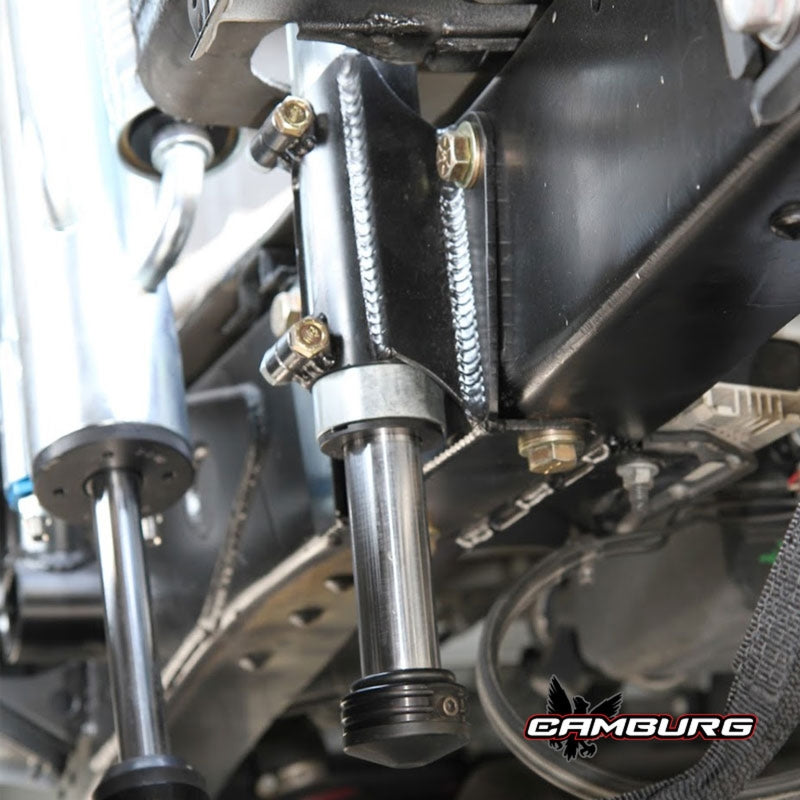

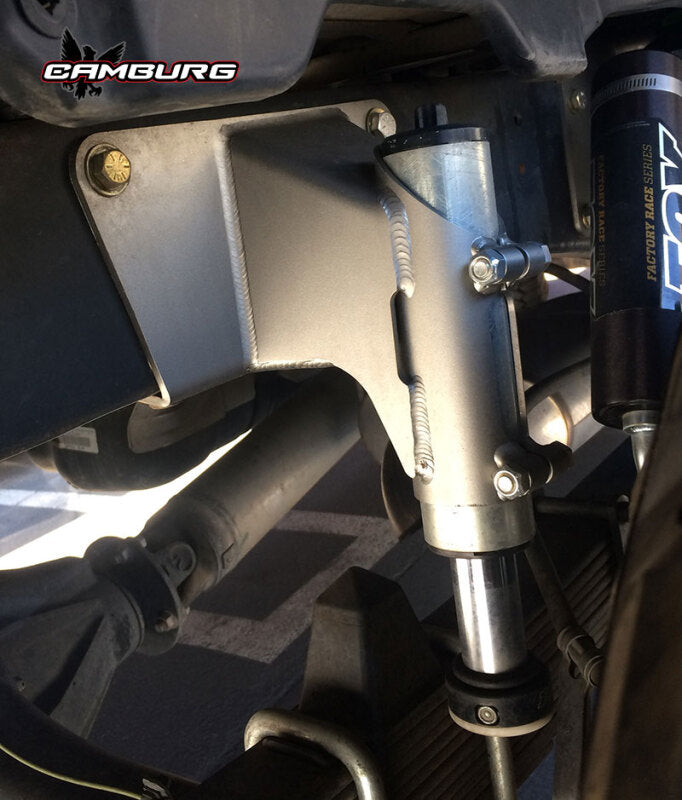

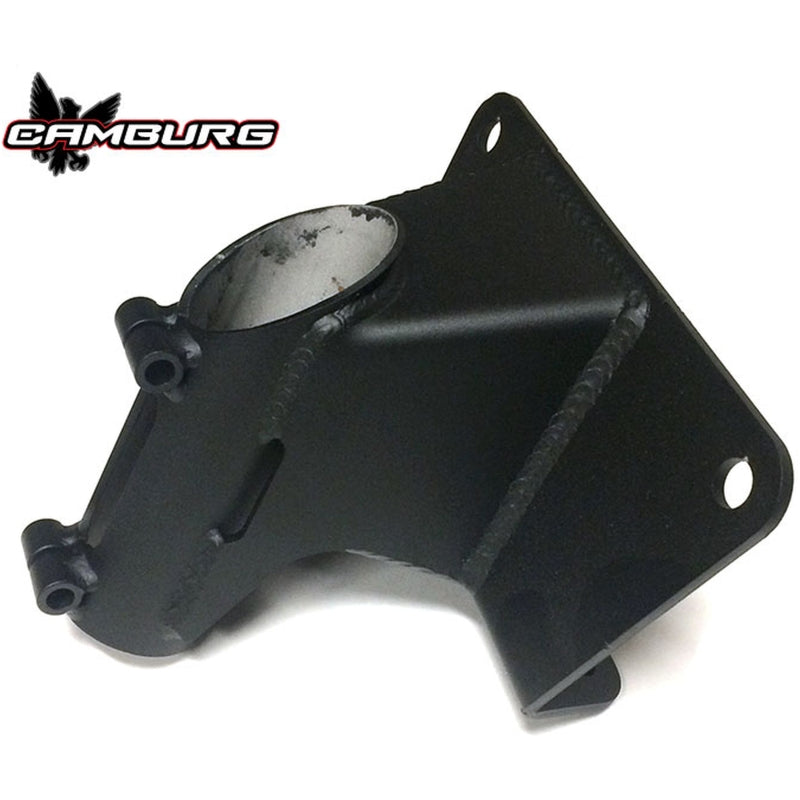

Camburg manufactures these mounts from CNC laser-cut material and MIG welds them for dependable strength. A wrinkle-black powder coat helps protect the finished mounts from corrosion, abrasion, and regular trail use while providing a clean, durable appearance. The design uses the factory frame mounting locations, allowing the mounts to bolt into existing holes after the original bump stop brackets are removed. This eliminates placement guesswork and supports a straightforward installation for properly equipped vehicles.

Installation requires removal of the factory bump stop mounts, which are riveted to the frame. Grinding and drilling are necessary during the removal process before installing the Camburg mounts with the included Grade 8 hardware. The mounts can be used with stock leaf springs, although Camburg strongly recommends pairing them with compatible Deaver spring-over leaf springs for optimal performance. Verify your suspension configuration and bump stop compatibility before installation. The Camburg CAM-320006 is intended as a rear bump stop mount solution for Toyota Tundra owners seeking improved suspension travel control without fabricating custom brackets.

  • Additional Bottom-Out Control: Helps manage suspension compression and maximize usable rear suspension travel.
  • Bolt-On Frame Installation: Uses existing frame holes after the factory riveted mounts are removed.
  • FOX Compatibility: Designed for use with compatible FOX hydraulic bump stops.
  • Heavy-Duty Construction: CNC laser-cut, MIG-welded mounts with a wrinkle-black powder coat finish.
  • Complete Mounting Hardware: Includes the required Grade 8 installation hardware.

Features:

  • Additional bottom-out control helps manage compression and maximize rear suspension travel
  • Bolt-on design uses existing frame holes after factory bump stop mount removal
  • Compatible with FOX hydraulic bump stops and spring-over leaf spring setups
  • CNC laser-cut and MIG-welded construction for dependable strength
  • Wrinkle-black powder coat finish helps protect against trail wear and corrosion
  • Includes Grade 8 mounting hardware
  • Fits 2007-2021 Toyota Tundra 2WD and 4WD models

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
