Camburg CAM-310289 Toyota Tacoma 2024-2025 Front Slapper Bump Stop Mount Kit

$695.00

Skip to product information
1 of 5

Regular price $695.00
Sale price $695.00 Regular price $695.00
Shipping calculated at checkout.
Adding bump stops to our Camburg Toyota Tacoma lower control arms is easy with our Slapper Bump Stop mount kit since the lower arms are already tabbed for it. Adding a bump stop adds a ton more control and bottoming resistance. This allows for a soft plush ride through the small stuff that doesn’t bottom out easily through the bigger hits and g-outs. This is a great add-on that makes a significant improvement off-road without taking away from ride quality on the street. Why a slapper arm setup you ask? The main benefit is it allows the air bump to strike further outboard on the lower arm making it much more effective and efficient. We’re able to keep the motion ratio geometry consistent through the bottoming out travel so there is constant contact with the lower arm and the bump stop isn’t swiping the lower arm. The bump stop only comes into play toward bottoming and allows free movement in the “ride zone" so the suspension is more active in that range. With the slapper arm design, we’re also able to incorporate a custom rubber pad to reduce noise on contact. Designed for our Camburg, FOX or King slapper bump stops with eyelets top and bottom, they work more like an air shock than your typical bump stop that blows through the travel. Last but not least, it’s a really cool design that just works. The slapper arms are CNC machined from billet 6061 aluminum, Type III hard anodized black and pivot on bearing bronze bushings. We supply aircraft AN bolts for the upper and lower mounts that have the proper grip/shoulder length for maximum strength. Mounts come raw as they need to be welded on. We recommend spraying them with black Steel-IT after welding. Toyota Tacoma 2wd/4wd '24-25 Front Slapper Bump Stop Mount Kit Only Need further assistance? Call 1-714-848-8880.
  • Optimized motion ratio for improved damping
  • CNC machined billet slapper arms
  • Additional bottom out control

Improve front suspension control on your 2024-2025 Toyota Tacoma with the Camburg CAM-310289 Front Slapper Bump Stop Mount Kit. Designed for Camburg lower control arms that are already tabbed for the mount, this kit provides a strong foundation for adding air bump stops and increasing bottom-out resistance. It helps maintain a controlled, comfortable ride through smaller impacts while providing additional support during larger hits, g-outs, and demanding off-road conditions. The kit is intended for 2WD and 4WD Tacoma applications and includes the slapper bump stop mounts only.
The slapper arm design positions the air bump farther outboard on the lower control arm, improving its effectiveness and operating efficiency. Its optimized motion ratio helps maintain consistent suspension geometry through bottoming travel, allowing the bump stop to remain in contact with the lower arm without swiping across it. The bump stop engages primarily near the end of the suspension travel, preserving active movement through the normal ride zone. A custom rubber contact pad helps reduce noise when the system reaches full compression, making this design suitable for vehicles that see both street and off-road use.

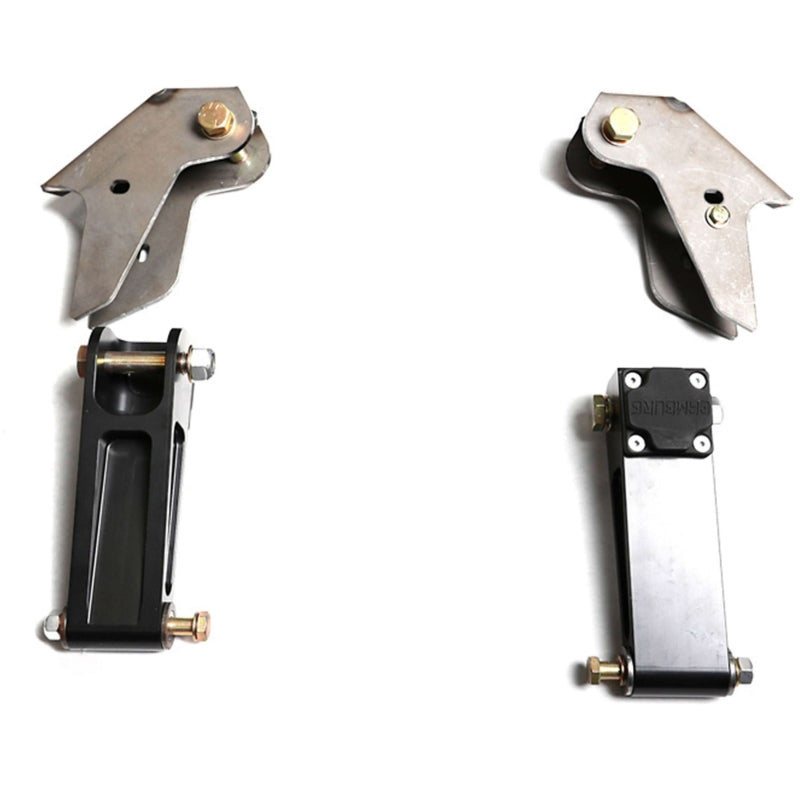

Each slapper arm is CNC machined from billet 6061 aluminum and finished with a Type III hard-anodized black coating for durable surface protection. Bearing bronze bushings provide a smooth, reliable pivot, while the included aircraft-grade AN bolts feature the proper grip and shoulder length for secure upper and lower mounting. The mounts are supplied raw and must be welded onto the vehicle or compatible Camburg lower control arms; repainting or coating after welding is recommended. This kit is designed for use with Camburg, FOX, or King slapper-style bump stops featuring upper and lower eyelets. Air bump stops are not included. Professional installation and verification of suspension clearance are recommended.

Features:

  • Application: Fits 2024-2025 Toyota Tacoma 2WD and 4WD front suspension applications
  • Optimized motion ratio: Positions the bump stop for improved damping and efficient bottom-out control
  • Slapper arm design: Allows the air bump stop to engage farther outboard on the lower control arm
  • Construction: CNC-machined billet 6061 aluminum slapper arms with Type III hard-anodized black finish
  • Pivot system: Bearing bronze bushings provide smooth and durable arm movement
  • Noise reduction: Custom rubber contact pad helps minimize impact noise
  • Hardware: Includes aircraft-grade AN bolts with application-specific grip and shoulder lengths
  • Compatibility: Designed for Camburg, FOX, or King bump stops with upper and lower eyelets
  • Installation: Raw mounts require welding and post-weld coating; air bump stops are not included

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
