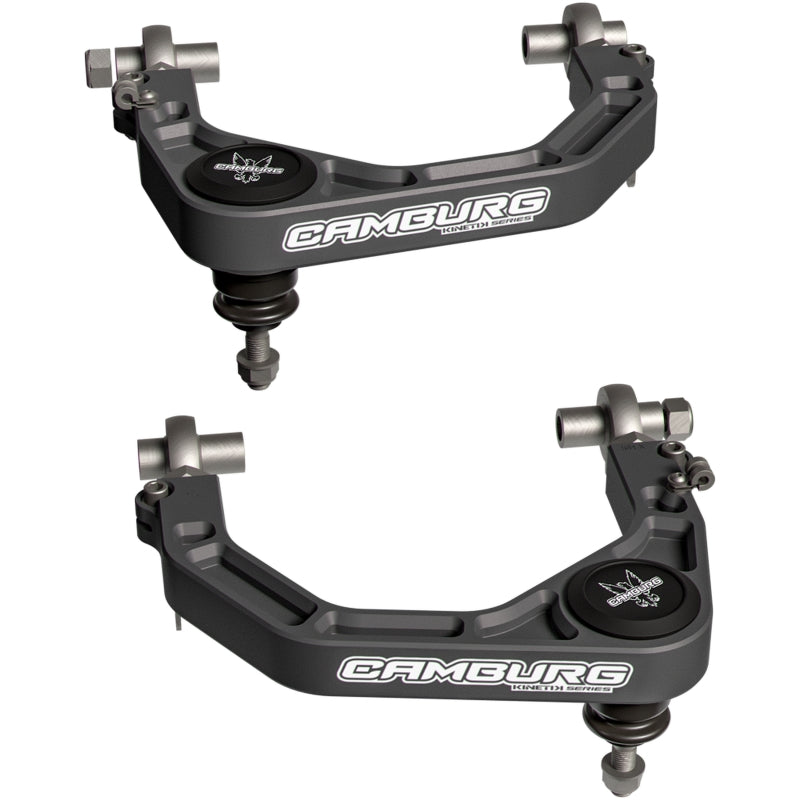

Camburg CAM-310277-GRY KINETIK Series Gray X-Joint XL Billet Upper Control Arms

Our 22'-25' LX600, 24'-25' GX550, 25' 4Runner, 24'-25' Land Cruiser, 24'-25' Tacoma KINETIK Series billet upper control arms allow for increased wheel travel and articulation out on the trail, corrected suspension geometry with increased caster for improved handling both on and off-road and are considerably higher quality and higher strength compared to the OEM parts for off-road use. These arms have undergone extensive CAD designing and machining to meet our high standards. They are CNC machined in-house from aerospace quality 6061 billet aluminum, Type II anodized Gray and laser etched. They utilize our new Camburg X-joint XL for increased strength, longevity and high misalignment, allowing for maximum wheel travel. The larger X-Joint XL is an extreme performance, all-weather, all conditions, high angle ball joint. These are much higher quality, considerably stronger and have an improved boot design that allows for higher angle use, better greasing and increased longevity. With higher strength heat-treated chromoly materials and an improved design, we were able to vastly improve upon what was available on the market. These fully sealed and greaseable joints are perfect for extreme conditions, so dirt, sand, rain, mud and snow are no match for them. Additional camber and caster adjustment is available with the use of larger and stronger FK 7/8" chromoly heim joints, which also eliminate flexing/deflection under hard use and heavy braking without binding. Step by step instructions with all the necessary hardware ensure successful installation for your next off-road adventure. Camburg KINETIK Series Gray X-Joint XL Upper Control Arm Kit Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Superior design and components used for the ultimate strength
• Corrects suspension geometry for improved handling
• Designed for maximum wheel travel and articulation
• Eliminates weak factory ball-joints

Upgrade the front suspension of your off-road vehicle with the Camburg CAM-310277-GRY KINETIK Series Gray X-Joint XL billet upper control arm kit. Designed for the 2022–2025 Lexus LX600, 2024–2025 Lexus GX550, 2025 Toyota 4Runner, 2024–2025 Toyota Land Cruiser, and 2024–2025 Toyota Tacoma, these performance control arms are engineered to increase wheel travel and suspension articulation while correcting factory suspension geometry. Increased caster helps improve steering response, handling, and stability both on the street and on demanding trails.
Built in-house from aerospace-quality 6061 billet aluminum, each control arm is CNC machined, Type II anodized in gray, and laser etched for a durable, professional finish. The Camburg KINETIK Series design replaces weaker factory ball joints with the high-strength X-Joint XL, an extreme-performance, high-angle ball joint developed for all-weather and all-condition use. Heat-treated chromoly construction, improved boot design, full sealing, and greaseable joints provide dependable operation in dirt, sand, rain, mud, and snow while supporting extended service life during aggressive off-road driving.
The control arms also feature larger, stronger FK 7/8-inch chromoly heim joints for additional camber and caster adjustment. These heims help reduce flex and deflection during hard use and heavy braking without binding, allowing the suspension to work through increased travel more effectively. Step-by-step installation instructions and the necessary hardware are included to support a straightforward installation. Wheel size, tire size, offset, backspacing, and suspension configuration can affect clearance; trimming plastic inner fenders or modifying body mounts behind the front tires may be required to prevent tire rubbing.

• Feature: Aerospace-quality 6061 billet aluminum construction for high strength and durability


• Feature: Corrects suspension geometry and adds caster for improved on-road and off-road handling


• Feature: X-Joint XL ball joints provide high misalignment, increased travel, and improved longevity


• Feature: Sealed and greaseable joints resist demanding dirt, sand, mud, rain, and snow conditions


• Feature: FK 7/8-inch chromoly heim joints provide additional camber and caster adjustment

Features:

• Aerospace-quality 6061 billet aluminum construction for high strength and durability

• Corrects suspension geometry and adds caster for improved on-road and off-road handling

• X-Joint XL ball joints provide high misalignment, increased travel, and improved longevity

• Sealed and greaseable joints resist demanding dirt, sand, mud, rain, and snow conditions

• FK 7/8-inch chromoly heim joints provide additional camber and caster adjustment

Compatible With
2022 Lexus LX600
2023 Lexus LX600
2024 Lexus GX550
2024 Lexus LX600
2024 Toyota Land Cruiser
2024 Toyota Tacoma
2025 Lexus GX550
2025 Lexus LX600
2025 Toyota 4Runner
2025 Toyota Land Cruiser
2025 Toyota Tacoma
