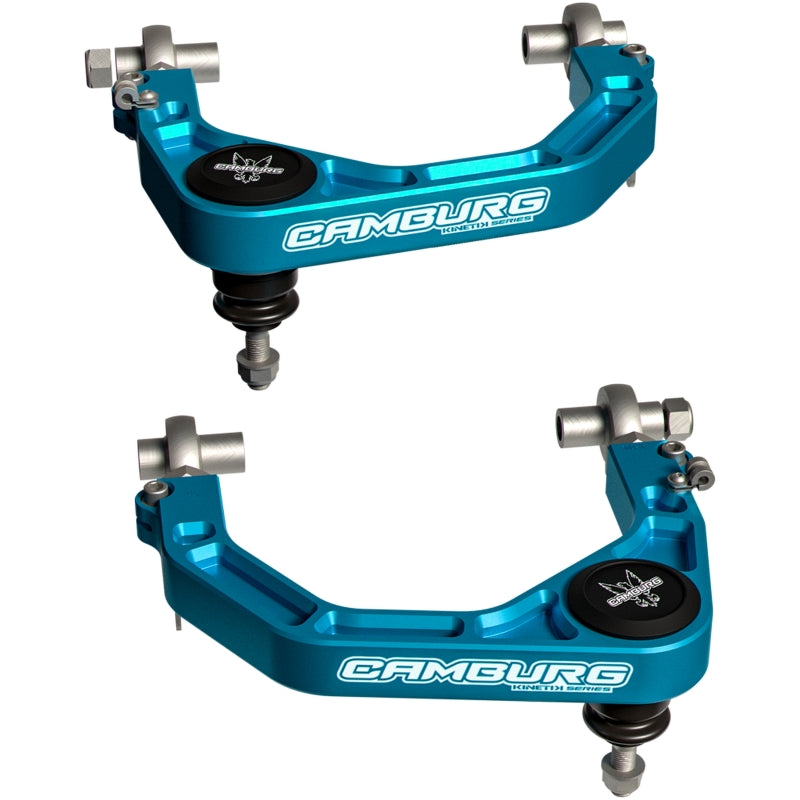

Camburg CAM-310277-BLU KINETIK Series X-Joint XL Billet Upper Control Arms for Lexus, Toyota, and 4Runner

Our 22'-25' LX600, 24'-25' GX550, 25' 4Runner, 24'-25' Land Cruiser, 24'-25' Tacoma KINETIK Series billet upper control arms allow for increased wheel travel and articulation out on the trail, corrected suspension geometry with increased caster for improved handling both on and off-road and are considerably higher quality and higher strength compared to the OEM parts for off-road use. These arms have undergone extensive CAD designing and machining to meet our high standards. They are CNC machined in-house from aerospace quality 6061 billet aluminum, Type II anodized Blue and laser etched. They utilize our new Camburg X-joint XL for increased strength, longevity and high misalignment, allowing for maximum wheel travel. The larger X-Joint XL is an extreme performance, all-weather, all conditions, high angle ball joint. These are much higher quality, considerably stronger and have an improved boot design that allows for higher angle use, better greasing and increased longevity. With higher strength heat-treated chromoly materials and an improved design, we were able to vastly improve upon what was available on the market. These fully sealed and greaseable joints are perfect for extreme conditions, so dirt, sand, rain, mud and snow are no match for them. Additional camber and caster adjustment is available with the use of larger and stronger FK 7/8" chromoly heim joints, which also eliminate flexing/deflection under hard use and heavy braking without binding. Step by step instructions with all the necessary hardware ensure successful installation for your next off-road adventure. Camburg KINETIK Series Blue X-Joint XL Upper Control Arm Kit Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Superior design and components used for the ultimate strength
• Corrects suspension geometry for improved handling
• Designed for maximum wheel travel and articulation
• Eliminates weak factory ball-joints

Upgrade your off-road suspension with Camburg KINETIK Series billet upper control arms, part number CAM-310277-BLU. Designed for the 2022-2025 Lexus LX600, 2024-2025 Lexus GX550, 2025 Toyota 4Runner, 2024-2025 Toyota Land Cruiser, and 2024-2025 Toyota Tacoma, this performance control arm kit improves wheel travel, suspension articulation, and handling both on and off the trail. The arms correct factory suspension geometry and provide increased caster adjustment for more controlled steering and improved vehicle stability.
CNC machined in-house from aerospace-quality 6061 billet aluminum, these upper control arms are built for demanding off-road use and finished with durable Type II blue anodizing and laser-etched markings. The design replaces weak factory ball joints with Camburg X-Joint XL assemblies engineered for high misalignment and maximum wheel travel. These extreme-performance joints use heat-treated chromoly components and an improved boot design for increased operating angle, better grease access, and extended service life. Fully sealed and greaseable construction helps protect against dirt, sand, rain, mud, and snow.
Additional camber and caster adjustment is available through larger, stronger FK 7/8-inch chromoly heim joints. The heims help reduce flex and deflection during hard use and heavy braking while maintaining smooth, bind-free suspension movement. Installation instructions and the required hardware are included to support a straightforward installation. Wheel size, offset, backspacing, tire selection, and suspension configuration can affect clearance; trimming the plastic inner fenders or modifying body mounts behind the front tires may be necessary to prevent rubbing.

• Superior design and components used for the ultimate strength


• Corrects suspension geometry for improved handling


• Designed for maximum wheel travel and articulation


• Eliminates weak factory ball joints

Features:

• Construction: CNC-machined aerospace-quality 6061 billet aluminum upper control arms

• Joint Design: Camburg X-Joint XL assemblies provide high misalignment and increased wheel travel

• Adjustment: FK 7/8-inch chromoly heim joints provide additional camber and caster adjustment

• Finish: Durable Type II blue anodized finish with laser-etched markings

• Durability: Heat-treated chromoly joint components and sealed, greaseable construction support demanding off-road conditions

• Suspension Performance: Corrects suspension geometry while improving handling, articulation, and trail capability

• Installation: Includes installation instructions and necessary hardware

Compatible With
2022 Lexus LX600
2023 Lexus LX600
2024 Lexus GX550
2024 Lexus LX600
2024 Toyota Land Cruiser
2024 Toyota Tacoma
2025 Lexus GX550
2025 Lexus LX600
2025 Toyota 4Runner
2025 Toyota Land Cruiser
2025 Toyota Tacoma
