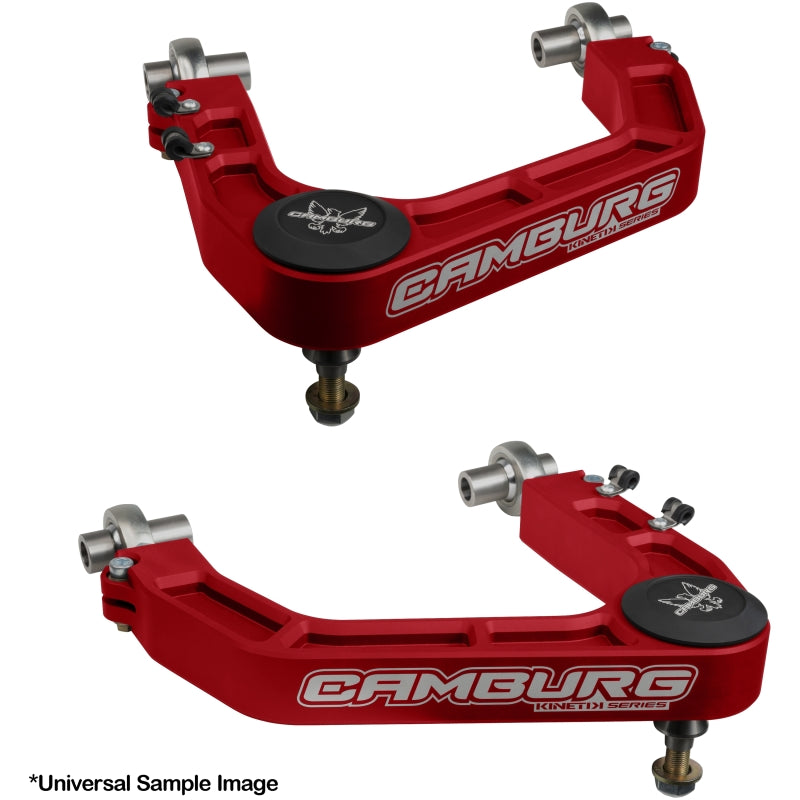

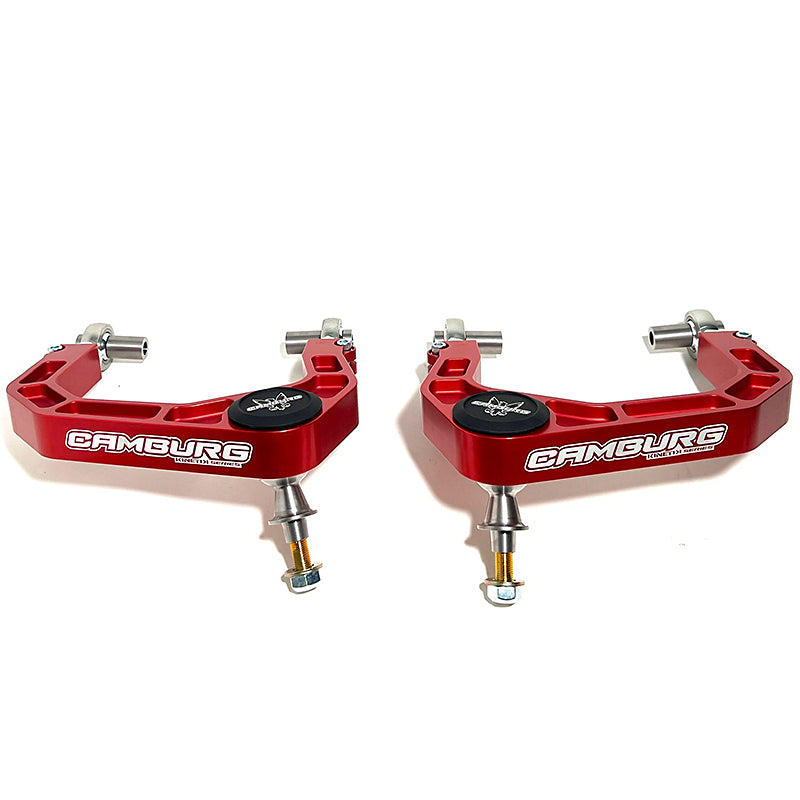

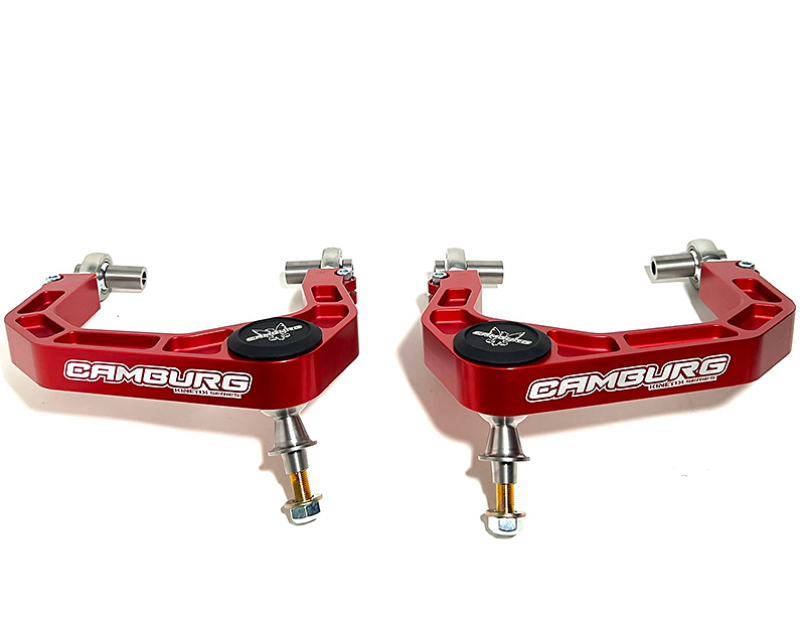

Camburg CAM-310184-RED KINETIK V2 Billet Uniball Upper Control Arms for Toyota Tacoma, 4Runner and FJ Cruiser

Our KINETIK Series billet upper control arms allow for increased wheel travel and articulation out on the trail, corrected suspension geometry with increased caster for improved handling both on and off-road and are considerably higher quality and higher strength compared to the OEM parts for off-road use. These arms have undergone extensive CAD designing and machining to meet our high standards. They are CNC machined in-house from aerospace quality 6061 billet aluminum, Type II anodized and laser etched. We utilize a larger FK 1.25" uniball with a military grade PTFE internal liner for increased strength, longevity and higher misalignment, allowing for maximum wheel travel. The uniball is adapted to the spindle/knuckle using model specific spacers machined from heat-treated stainless steel, for a precision fit without the need for drilling or modifications. The 1.25" uniball allows for a larger and stronger 12-point bolt with a low-profile press-on uniball cap to resist the elements. Additional camber and caster adjustment is available with the use of larger and stronger FK 7/8" chromoly heim joints, which also eliminate flexing/deflection under hard use and heavy braking without binding. Step by step instructions with all the necessary hardware ensure a successful installation for your next off-road adventure. KINETIK Series Uniball Upper Control Arm Kit Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Superior design and components used for the ultimate strength
• Corrects suspension geometry for improved handling
• Designed for maximum wheel travel and articulation
• Eliminates weak factory ball-joints

Additional camber and caster adjustment is provided by FK chromoly heim joints, which help reduce flex and deflection during hard use and heavy braking while maintaining smooth, bind-free suspension operation. Installation instructions and the required hardware are included to support a straightforward installation. Wheel size, offset, backspacing, tire size, and suspension configuration can affect clearance; trimming plastic inner fenders or modifying body mounts behind the front tires may be necessary to prevent rubbing.

• Superior billet construction and high-strength components
• Corrects suspension geometry for improved handling
• Designed to maximize wheel travel and articulation
• Replaces weak factory ball joints with a durable uniball system

Features:

• Construction: CNC-machined aerospace-quality 6061 billet aluminum control arms

• Finish: Durable red Type II anodized finish with laser-etched details

• Uniball: FK uniball with a military-grade PTFE internal liner for strength and durability

• Adjustment: FK chromoly heim joints provide additional camber and caster adjustment

• Fitment: Designed for select 2005-2023 Toyota Tacoma, 2003-2023 Toyota 4Runner, and 2007-2014 Toyota FJ Cruiser applications

• Installation: Includes model-specific stainless steel spacers, required hardware, and step-by-step instructions

Compatible With
2003 Lexus GX470
2003 Toyota 4Runner
2004 Toyota 4Runner
2005 Lexus GX470
2005 Toyota 4Runner
2005 Toyota Tacoma
2006 Lexus GX470
2006 Toyota 4Runner
2006 Toyota Tacoma
2007 Lexus GX470
2007 Toyota 4Runner
2007 Toyota FJ Cruiser
2007 Toyota Tacoma
2008 Lexus GX470
2008 Toyota 4Runner
2008 Toyota FJ Cruiser
2008 Toyota Tacoma
2009 Lexus GX470
2009 Toyota 4Runner
2009 Toyota FJ Cruiser
2009 Toyota Tacoma
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2010 Toyota Tacoma
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2011 Toyota Tacoma
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2012 Toyota Tacoma
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2013 Toyota Tacoma
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2014 Toyota Tacoma
2015 Lexus GX460
2015 Toyota 4Runner
2015 Toyota Tacoma
2016 Lexus GX460
2016 Toyota 4Runner
2016 Toyota Tacoma
2017 Lexus GX460
2017 Toyota 4Runner
2017 Toyota Tacoma
2018 Lexus GX460
2018 Toyota 4Runner
2018 Toyota Tacoma
2019 Lexus GX460
2019 Toyota 4Runner
2019 Toyota Tacoma
2020 Lexus GX460
2020 Toyota 4Runner
2020 Toyota Tacoma
2021 Lexus GX460
2021 Toyota 4Runner
2021 Toyota Tacoma
2022 Lexus GX460
2022 Toyota 4Runner
2022 Toyota Tacoma
2023 Toyota 4Runner
2023 Toyota Tacoma
2024 Toyota 4Runner
