Camburg CAM-310049-H Race Series Long Travel Kit with Heim UCA for 2010-2023 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser

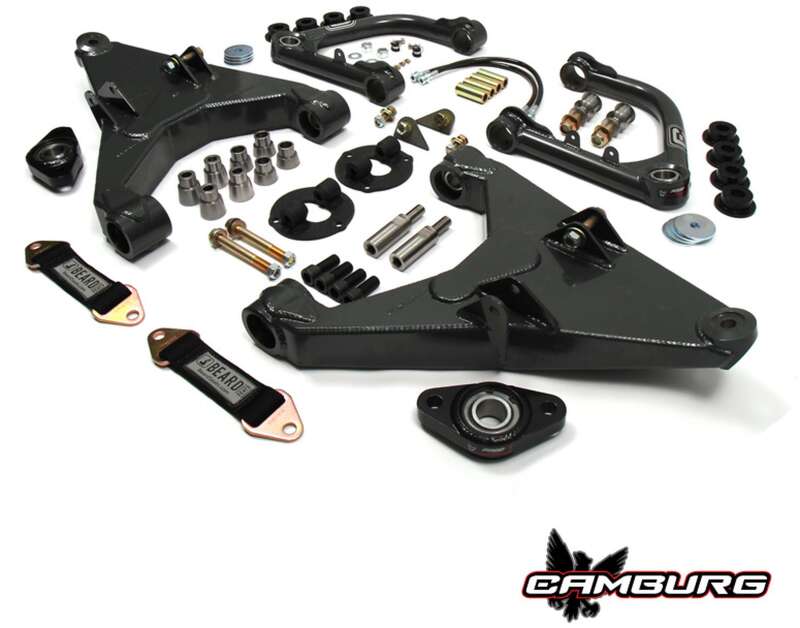

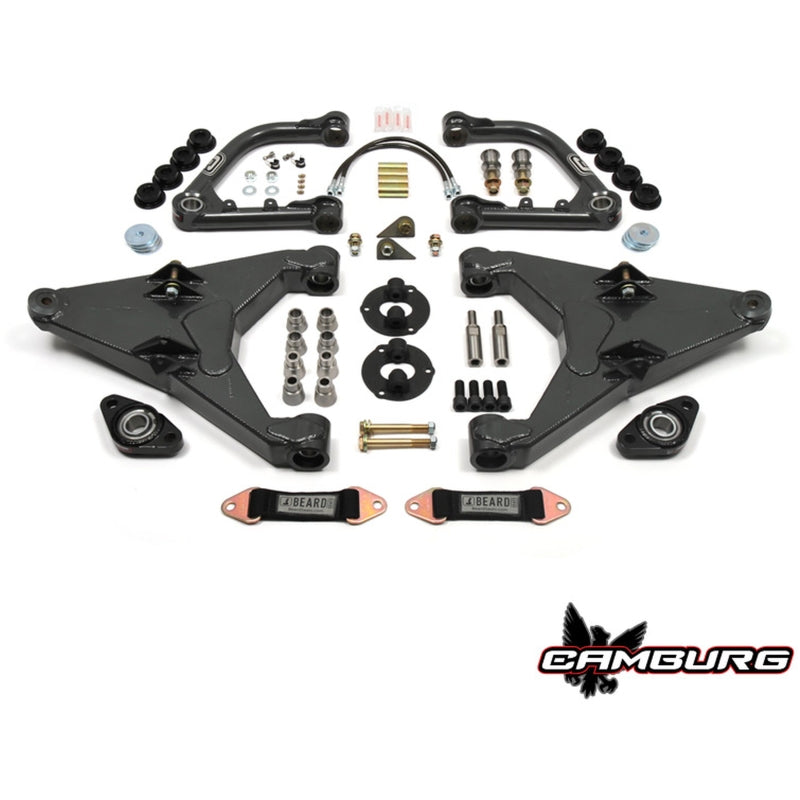

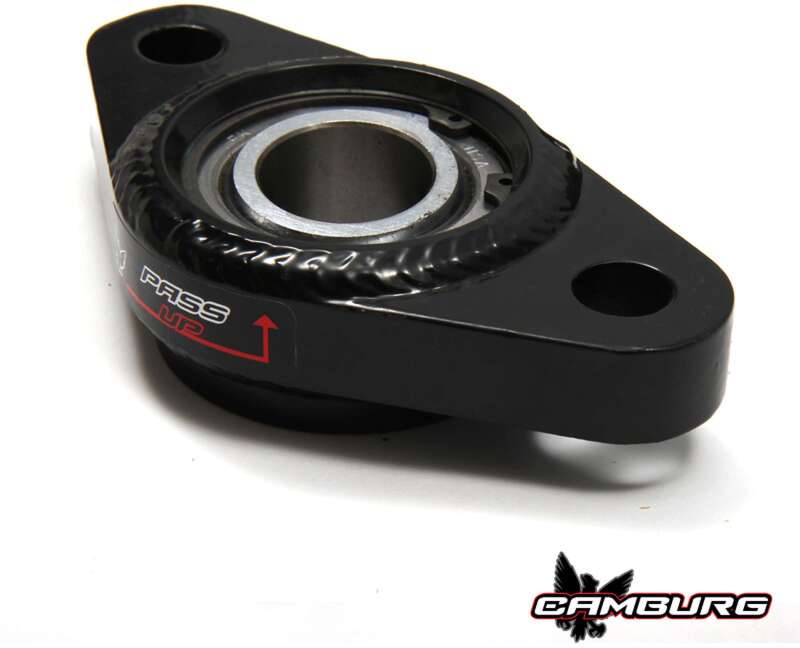

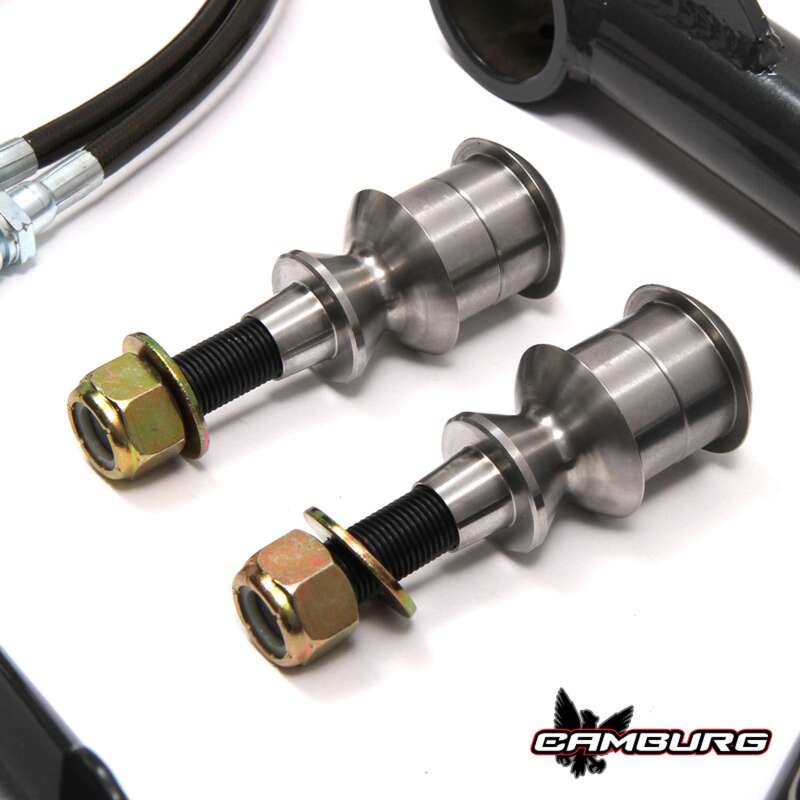

The Camburg Long Travel kit features high-performance A-Arm components. The lower arm includes uni-balls in the lower frame pivots and a uni-ball lower ball joint replacement. The upper arm pivots on urethane bushings with zerk fitting and 1.250" race uni-balls. The kit also includes heat-treated stainless steel adapters to connect the uni-ball to the spindle. The system utilizes Camburg SPEC 8" travel 2.5" reservoir coilovers by FOX or King, allowing for up to 15" travel on a 2×4 and 14" on a 4×4. The system can be upgraded with a weld-on bypass shock mount and a custom FOX or King 2.5" 3 tube bypass shock. This kit is designed for trail running, desert racing, or off-road exploration. It is recommended to have it installed by a reputable off-road shop familiar with these types of products. Fiberglass front fenders need to be installed with this suspension system. RWD models can run a coilover, bypass shock, and air bump stop, while 4WD models can run a coilover and air bump stop or coilover and bypass shock. This kit fits non-KDSS equipped models only. Shock specs include a 2.5 x 8" remote coilover, 16" x 500-600 lb coils, 23.9" extended length, 16" collapsed length, tapered/raised lower spring seat, 2" longer lower rod end, 1.25" width shock spacers, and a 90-degree res. fitting on the shock. Camburg Toyota 4-Runner 10-23 | FJ 10-14 Race Series Long Travel Kit Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Designed for serious offroad use
• Increased wheel travel
• Maximum articulation

The Camburg CAM-310049-H Race Series Long Travel Kit is engineered for serious off-road driving, including trail running, desert racing, and demanding backcountry exploration. Designed for 2010-2023 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser models without KDSS, this suspension system increases front wheel travel and articulation while providing a strong foundation for high-performance coilover suspension. The kit is intended for experienced off-road applications and should be installed by a reputable shop familiar with long-travel suspension systems.

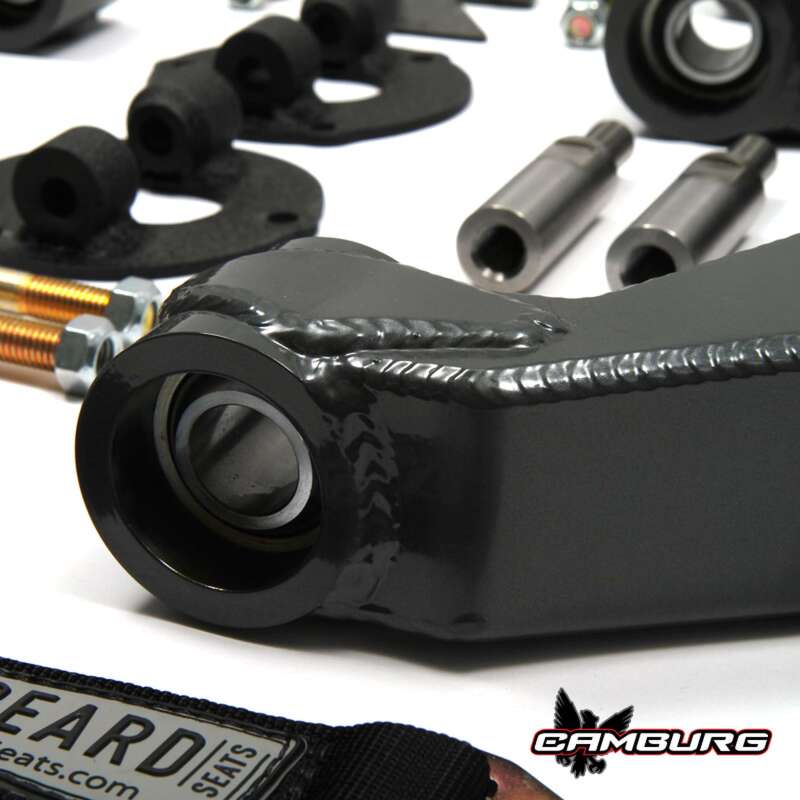

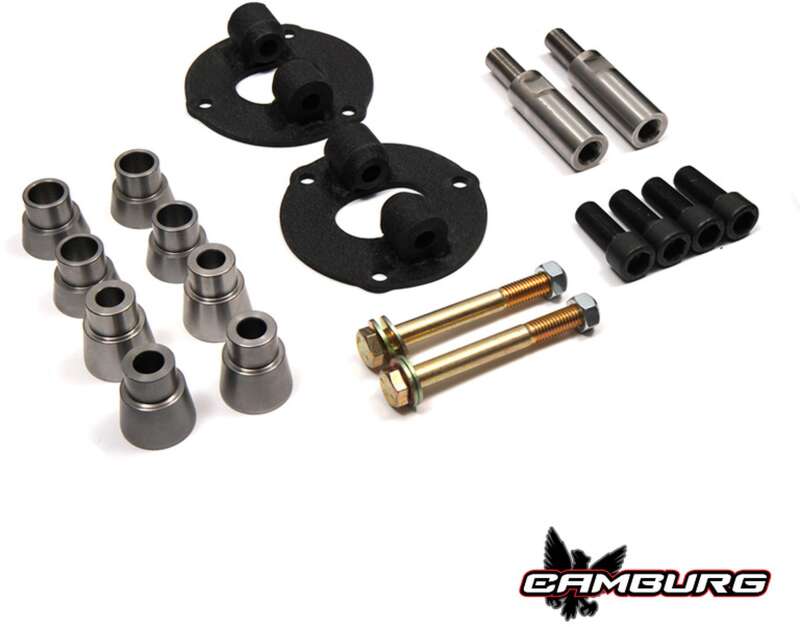

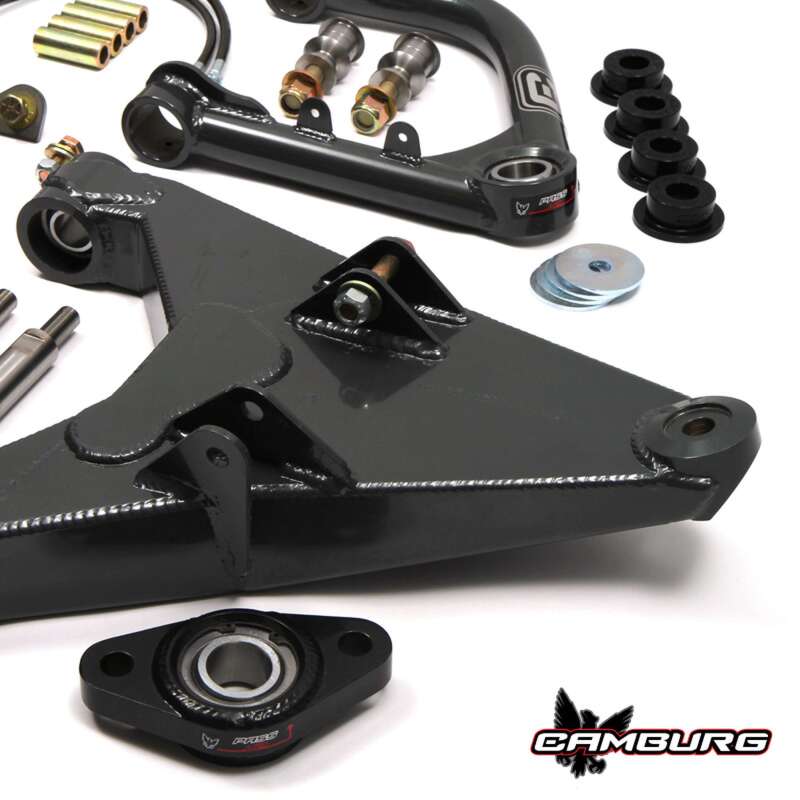

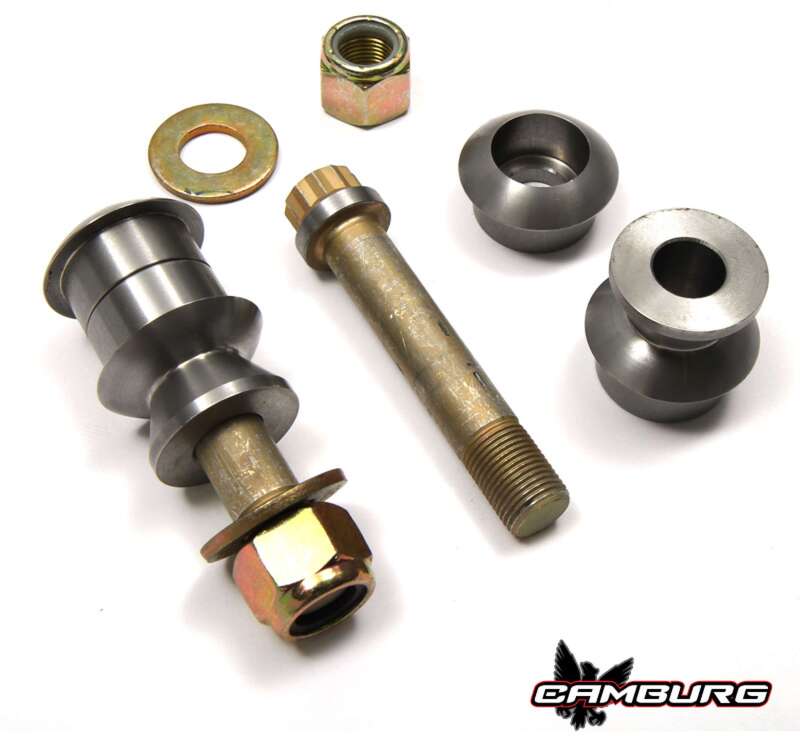

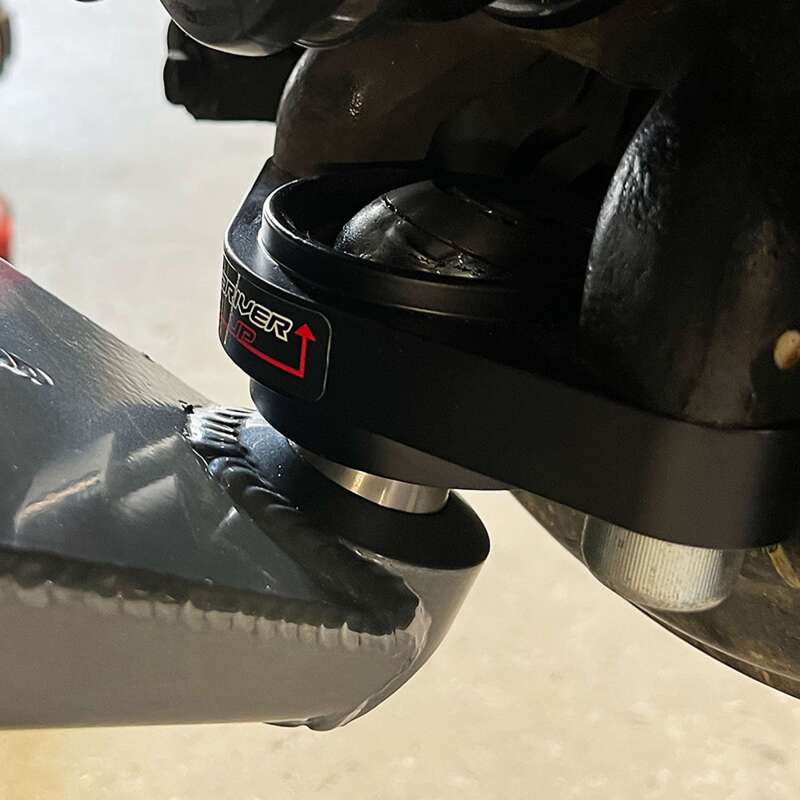

The lower A-arms use uni-balls at the lower frame pivots along with a uni-ball lower ball joint replacement. Upper control arms pivot on durable urethane bushings with grease fittings and use race-style uni-balls for improved suspension movement. Heat-treated stainless steel adapters connect the uni-balls to the spindles, helping provide a durable and precise connection throughout the suspension cycle. Camburg SPEC coilover compatibility allows the system to be configured with FOX or King remote-reservoir coilovers, with additional options for an air bump stop or bypass shock depending on the vehicle drivetrain and intended use.
Fiberglass front fenders are required with this suspension system. Two-wheel-drive models can be configured with a coilover, bypass shock, and air bump stop, while four-wheel-drive models can use a coilover with an air bump stop or bypass shock. The system can also be upgraded with a weld-on bypass shock mount and a custom FOX or King bypass shock. Wheel size, offset, backspacing, tire size, and other suspension choices may affect installation requirements, so trimming the plastic inner fenders or modifying body mounts behind the front tires may be necessary to prevent rubbing. Camburg designed this kit for increased clearance, maximum articulation, and dependable performance in demanding off-road conditions.

Features:

• Off-Road Performance: Designed for serious trail use, desert racing, and off-road exploration.

• Long Travel Suspension: Increases front wheel travel and articulation for improved suspension performance over uneven terrain.

• Uni-Ball Control Arms: Includes lower A-arms with frame-pivot uni-balls and upper arms with race-style uni-balls and urethane bushings.

• Coilover Compatibility: Configured for Camburg SPEC remote-reservoir coilovers from FOX or King, with support for additional bypass shock and air bump stop setups.

• Vehicle Fitment: Fits 2010-2023 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser models without KDSS.

• Installation Requirements: Requires fiberglass front fenders and may require inner-fender trimming or body-mount modifications for tire clearance.

Compatible With
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner
2018 Toyota 4Runner
2019 Toyota 4Runner
2020 Toyota 4Runner
2021 Toyota 4Runner
2022 Toyota 4Runner
2023 Toyota 4Runner
2024 Toyota 4Runner
