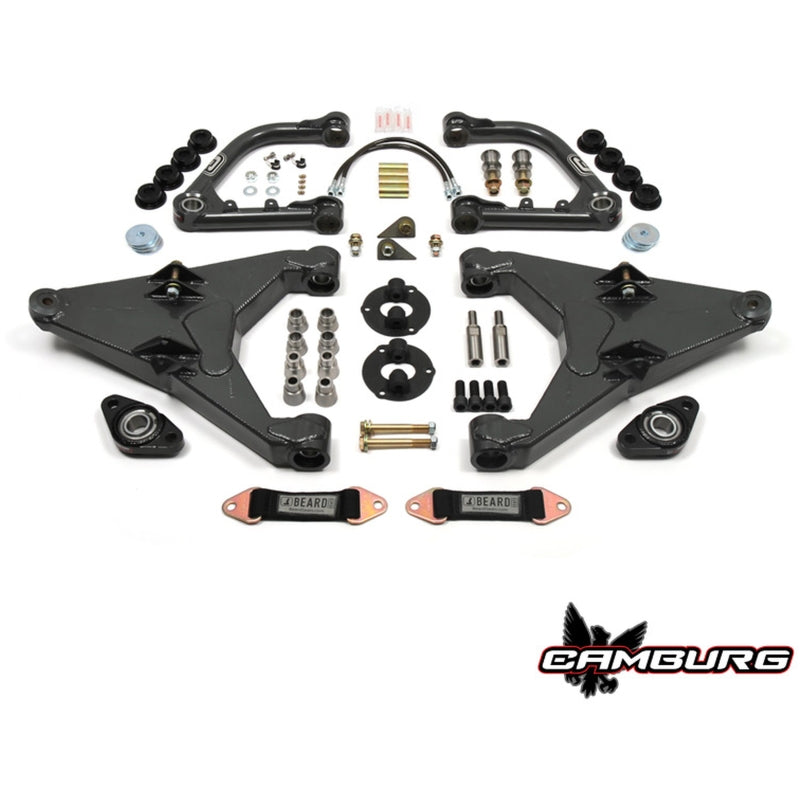

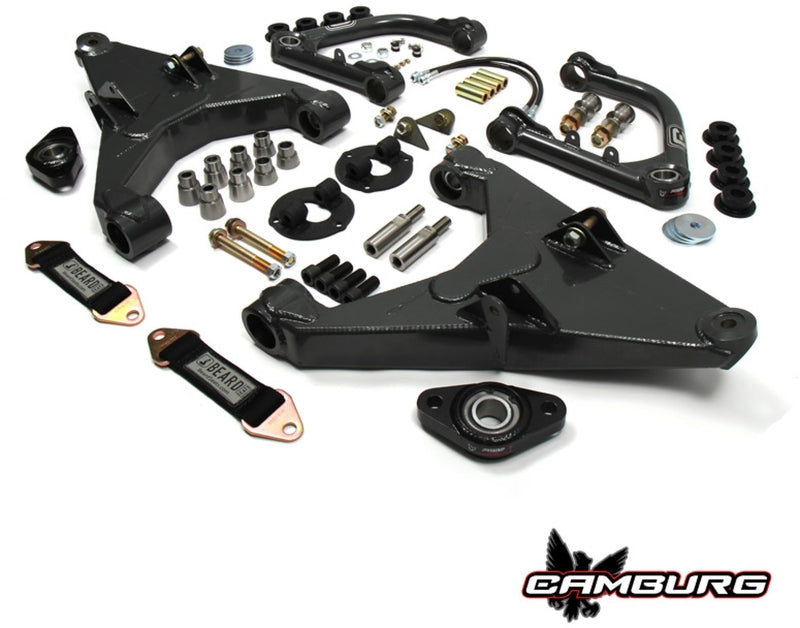

Camburg 10-23 Toyota 4-Runner / 10-14 Toyota FJ Race Series L/T Kit (UNI UCA)

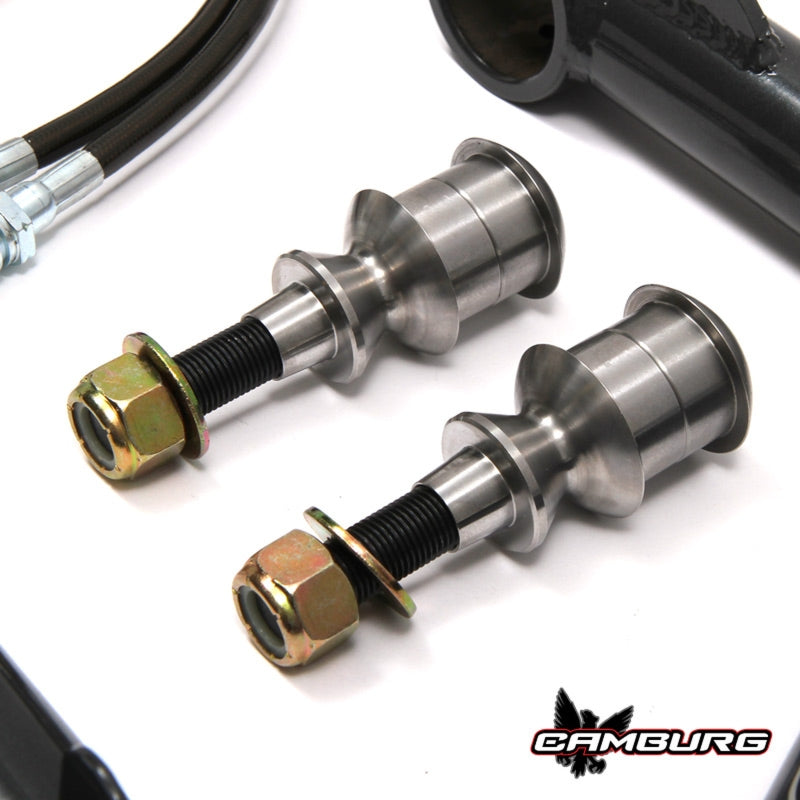

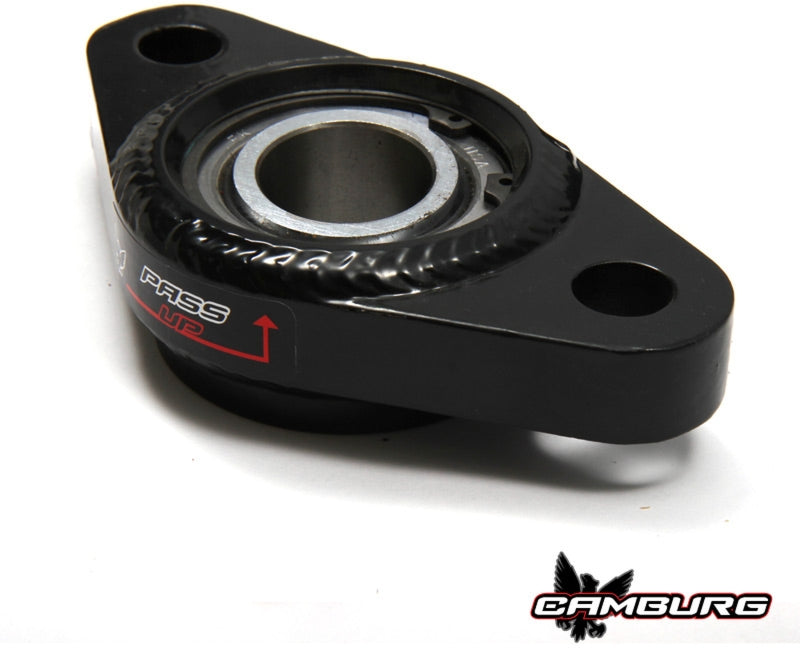

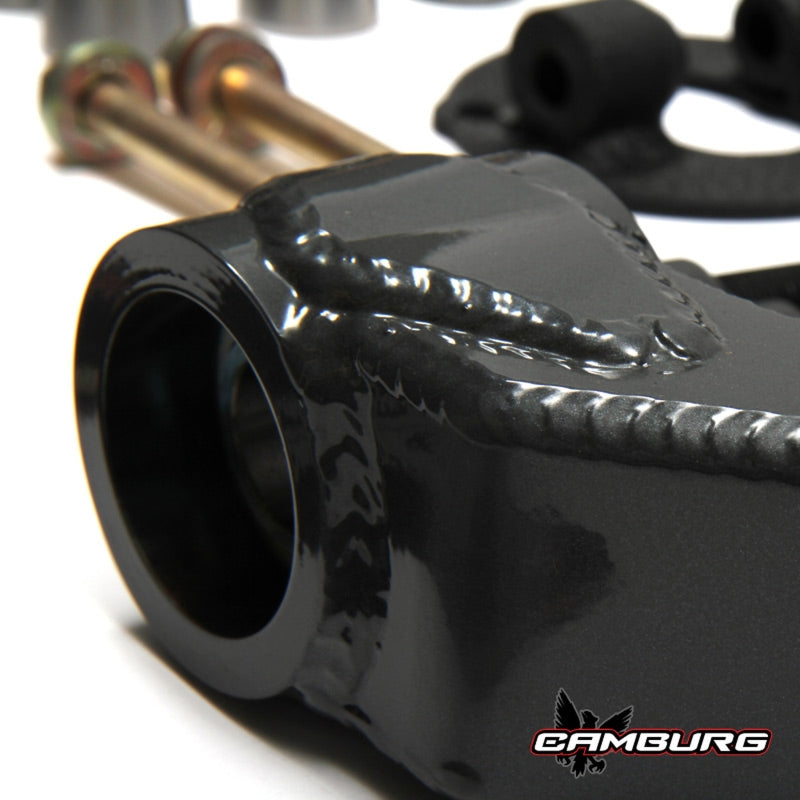

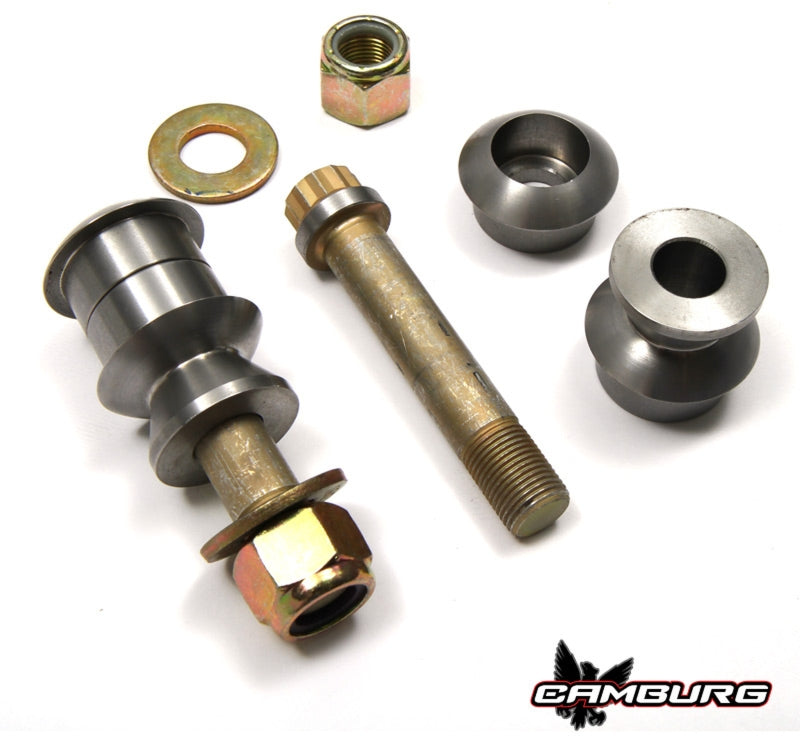

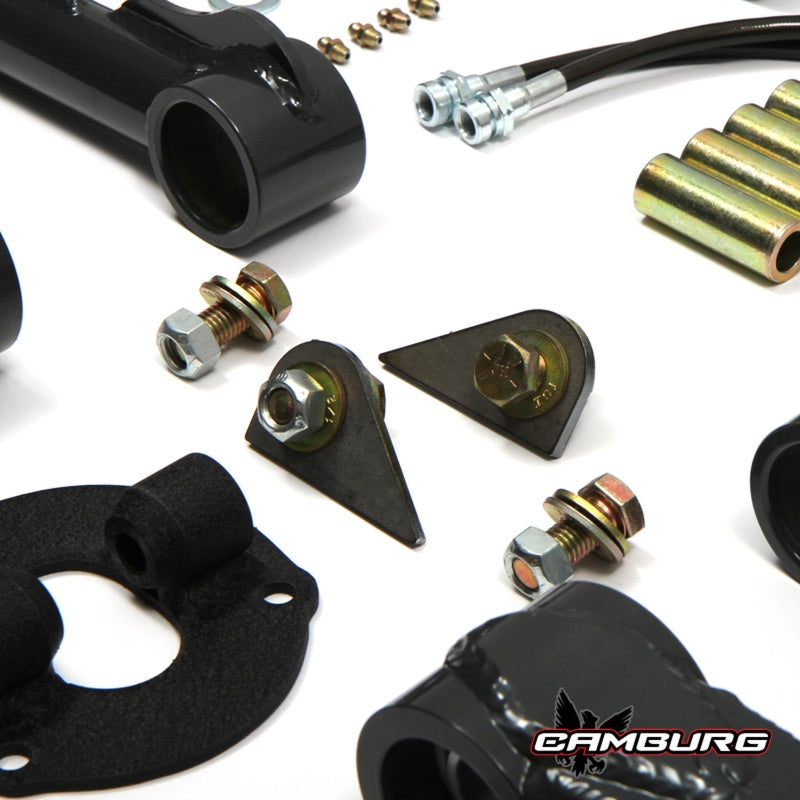

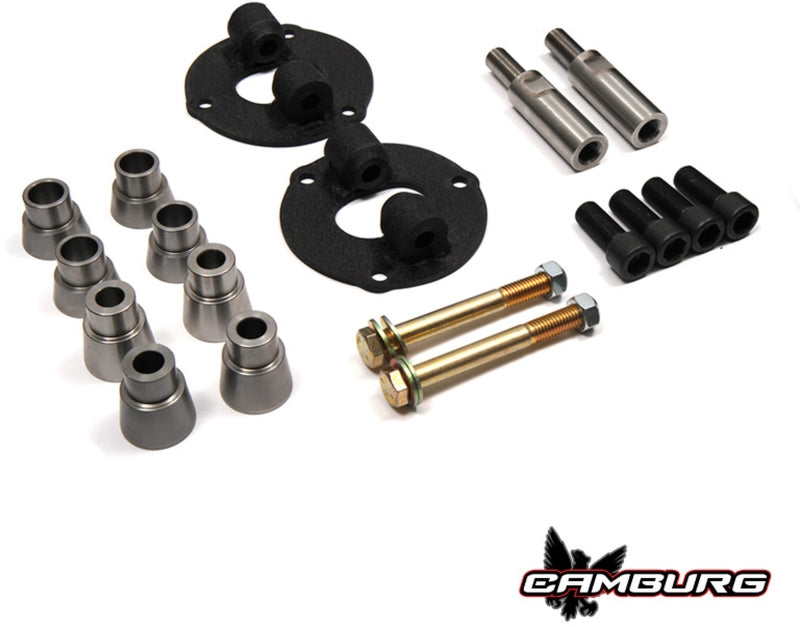

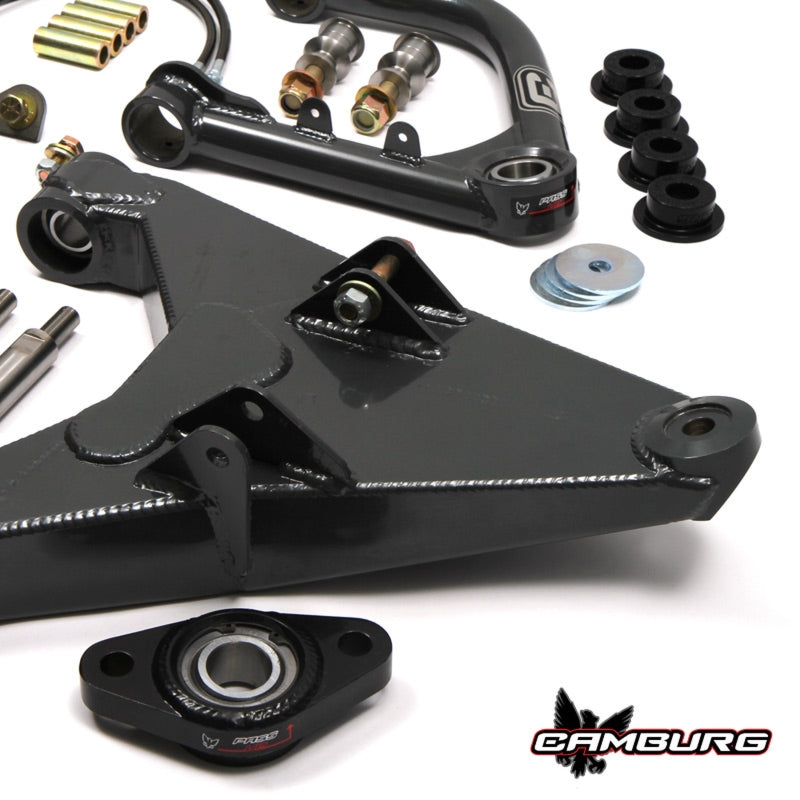

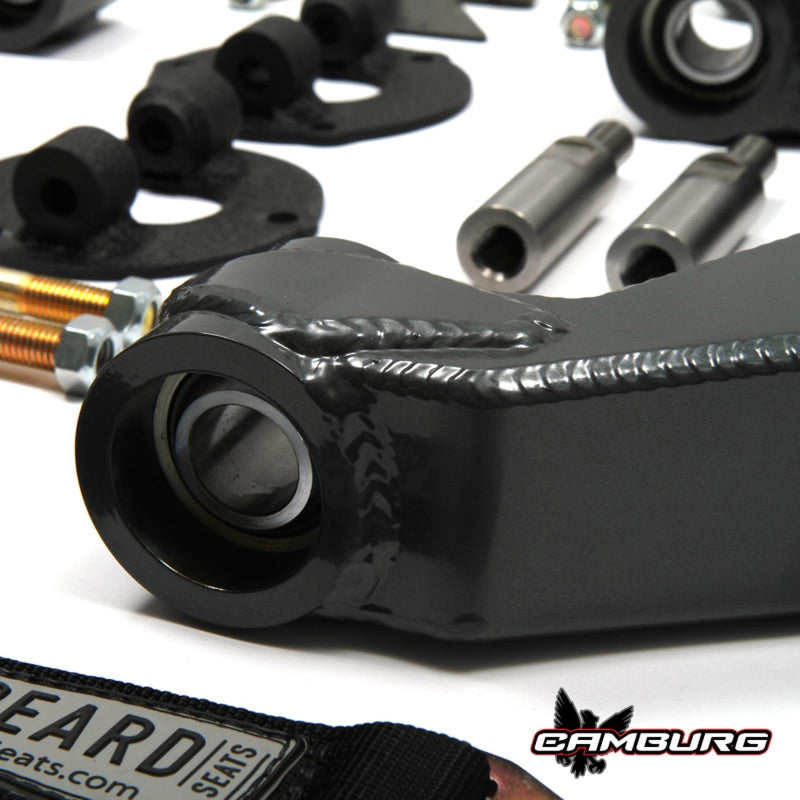

The Camburg Long Travel kit features high-performance A-Arm components. The lower arm includes uni-balls in the lower frame pivots and a uni-ball lower ball joint replacement. The upper arm pivots on urethane bushings with zerk fitting and 1.250" race uni-balls. The kit also includes heat-treated stainless steel adapters to connect the uni-ball to the spindle. The system utilizes Camburg SPEC 8" travel 2.5" reservoir coilovers by FOX or King, allowing for up to 15" travel on a 2×4 and 14" on a 4×4. The system can be upgraded with a weld-on bypass shock mount and a custom FOX or King 2.5" 3 tube bypass shock. This kit is designed for trail running, desert racing, or off-road exploration. It is recommended to have it installed by a reputable off-road shop familiar with these types of products. Fiberglass front fenders need to be installed with this suspension system. RWD models can run a coilover, bypass shock, and air bump stop, while 4WD models can run a coilover and air bump stop or coilover and bypass shock. This kit fits non-KDSS equipped models only. Shock specs include a 2.5 x 8" remote coilover, 16" x 500-600 lb coils, 23.9" extended length, 16" collapsed length, tapered/raised lower spring seat, 2" longer lower rod end, 1.25" width shock spacers, and a 90-degree res. fitting on the shock. Camburg Toyota 4-Runner '10-23 | '10-14 FJ Race Series Long Travel Kit - Uniball Upper Control Arms Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Designed for serious offroad use
• Increased wheel travel
• Maximum articulation

Compatible With
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner
2018 Toyota 4Runner
2019 Toyota 4Runner
2020 Toyota 4Runner
2021 Toyota 4Runner
2022 Toyota 4Runner
2023 Toyota 4Runner
2024 Toyota 4Runner
