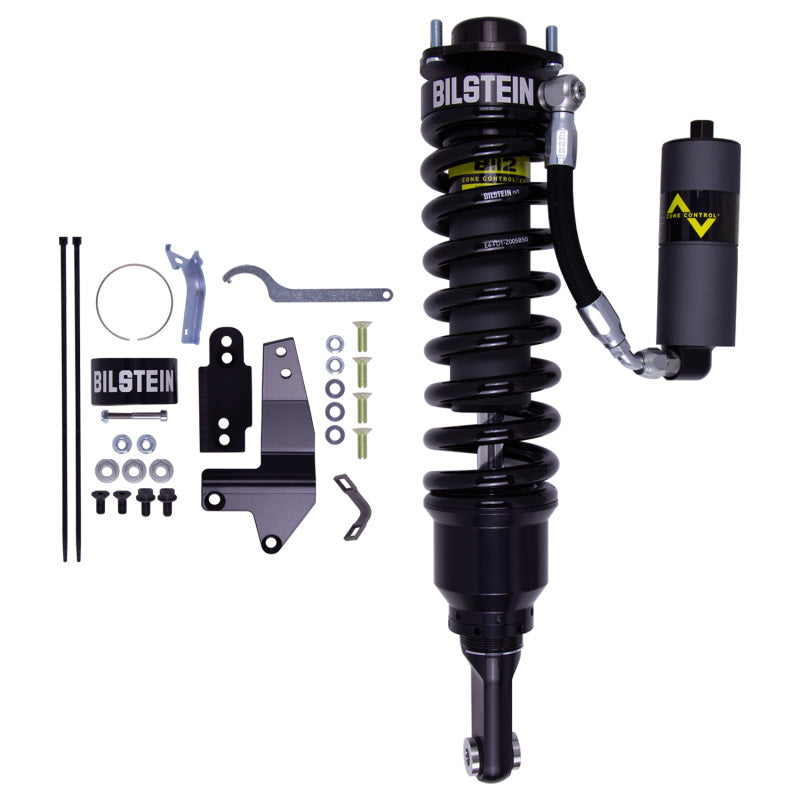

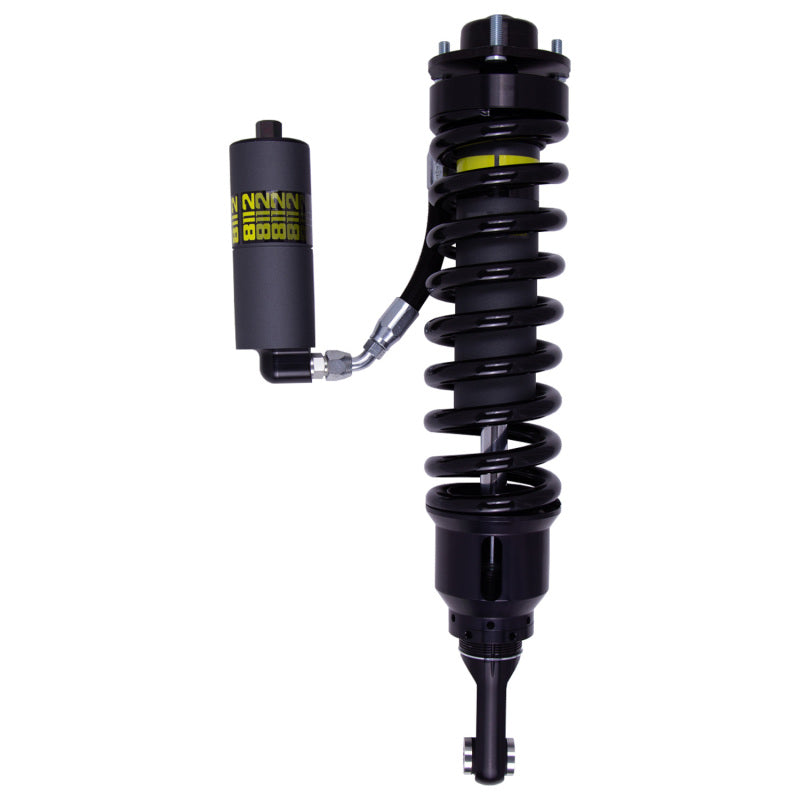

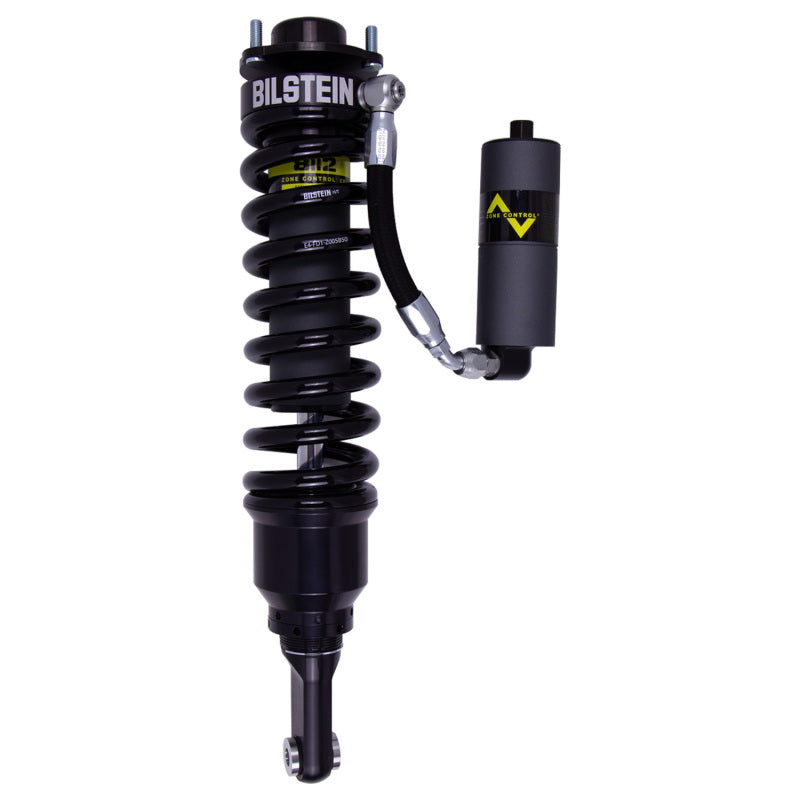

Bilstein B8 8112 ZoneControl CR Front Right Coilover Module 41-324363 for Toyota 4Runner

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. 60mm Front Right Corner Module

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
• 60mm remote reservoir for increased oil capacity and cooling

Upgrade the front suspension of your compatible Toyota 4Runner with the Bilstein B8 8112 ZoneControl CR front right corner module, part number 41-324363. Designed as a direct-fit coilover solution for select Toyota 4Runner applications, this position-sensitive shock combines responsive handling, controlled suspension movement, and improved ride comfort for both daily driving and demanding off-road use. The module is engineered for drivers who want greater control without sacrificing everyday drivability.
The ZoneControl CR system uses a triple-piston design to manage damping across changing suspension positions. Its position-sensitive technology provides a comfort-oriented response during normal road conditions while delivering increased control as the suspension encounters larger inputs. Three compression zones and two rebound zones work together to help maintain tire contact, reduce excessive body movement, and provide more predictable handling across varied terrain. This balanced damping strategy makes the Bilstein B8 8112 well suited for light trucks and SUVs used on pavement, trails, and uneven surfaces.
The coilover module includes a threaded spring seat for ride-height adjustment based on the application, allowing suspension tuning to accommodate different vehicle setups and driving preferences. A remote reservoir increases oil capacity and helps manage heat during extended or demanding use. The included bolt-on, anodized reservoir chassis mount supports a clean, secure installation. This front right module is intended for select 2010-2017 Toyota 4Runner applications; verify vehicle fitment and corner placement before ordering. Bilstein B8 8112 ZoneControl CR technology delivers durable performance and refined suspension control in a direct-fit package.

Features:

• Position-Sensitive Damping: ZoneControl CR technology manages changing suspension positions with three compression zones and two rebound zones.

• Triple-Piston Design: Independent pistons provide a balanced combination of daily-driving comfort and control during large suspension inputs.

• Adjustable Ride Height: Threaded spring seat allows application-specific ride-height tuning for a more customized suspension setup.

• Remote Reservoir: Separate reservoir increases oil capacity and supports improved cooling during extended or demanding driving.

• Direct-Fit Construction: Designed for installation on the front right corner of select Toyota 4Runner applications.

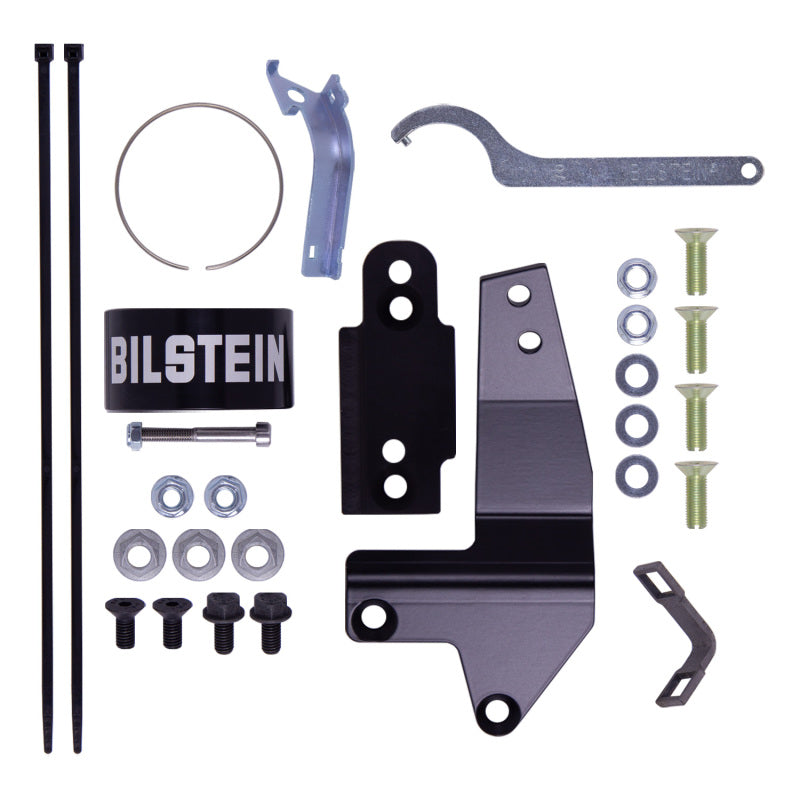

• Included Chassis Mount: Bolt-on anodized reservoir mount provides secure positioning and a clean installation.

Compatible With
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner
2018 Toyota 4Runner
2019 Toyota 4Runner
2020 Toyota 4Runner
2021 Toyota 4Runner
2022 Toyota 4Runner
2023 Toyota 4Runner
2024 Toyota 4Runner
