Bilstein B8 8112 ZoneControl CR Front Right Coilover Module 41-324165 for Toyota 4Runner and Lexus GX460

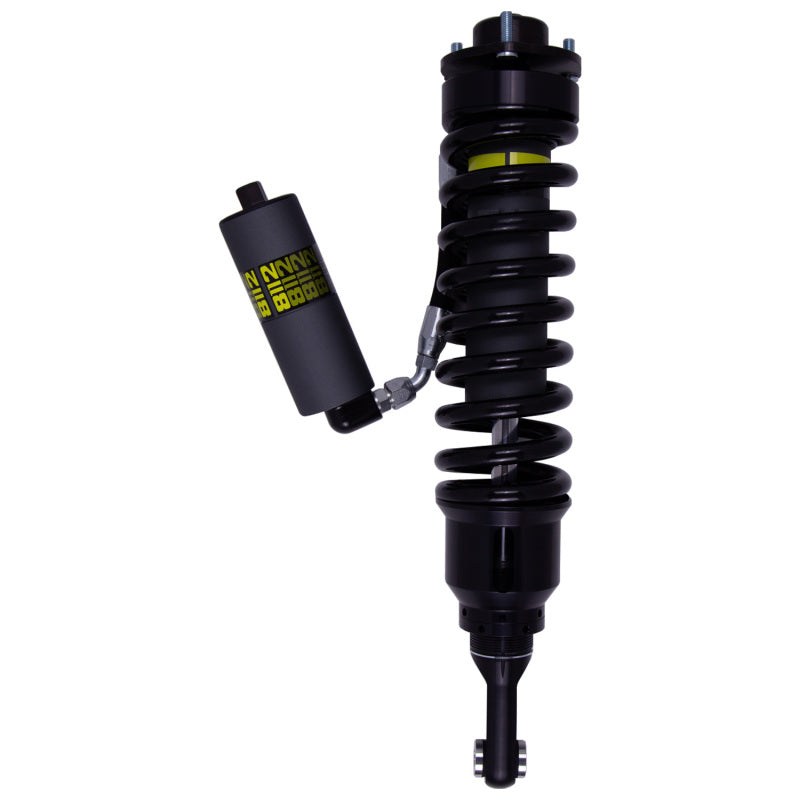

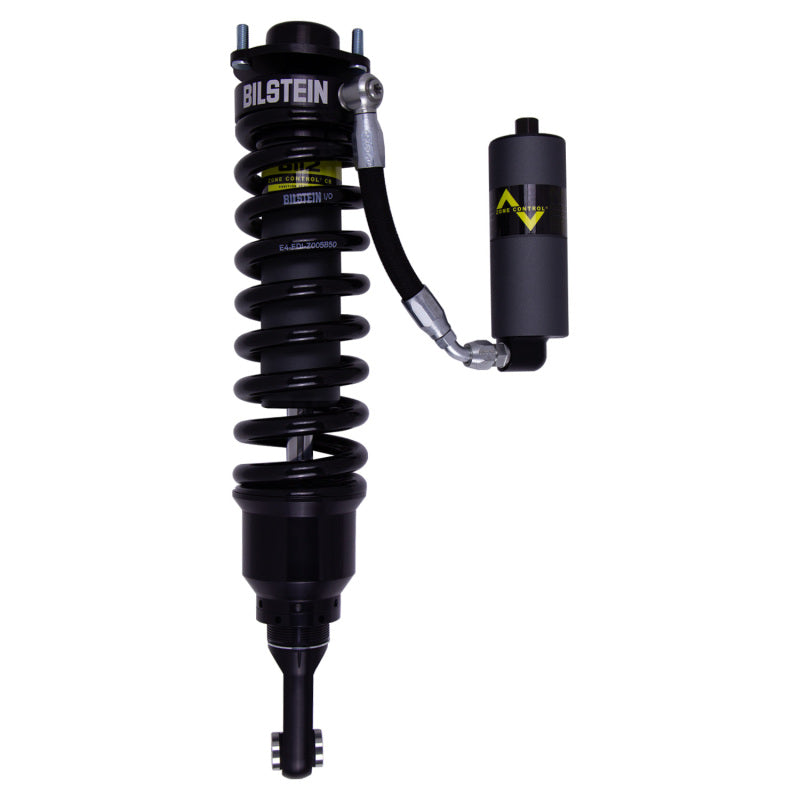

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. 60mm Front Right Corner Module

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
• 60mm remote reservoir for increased oil capacity and cooling

Upgrade the front suspension of your select Toyota 4Runner or Lexus GX460 with the Bilstein B8 8112 ZoneControl CR front right corner module, part number 41-324165. Designed as a direct-fit coilover shock, this module combines adjustable ride height capability with position-sensitive damping to provide a controlled, comfortable driving experience on the street and dependable performance when the suspension encounters larger impacts. It is engineered for use on the front right corner and is suitable for select Toyota 4Runner applications from 2010 through 2015, along with select 2010 and 2011 Lexus GX460 models.
The Bilstein ZoneControl CR system uses a triple-piston design to deliver three distinct compression zones and two rebound zones. This position-sensitive damping technology allows the shock to respond appropriately across changing suspension positions, helping maintain comfort during everyday driving while adding control during demanding off-road conditions or large suspension inputs. The threaded spring seat supports ride-height adjustment when properly configured for the application, allowing suspension setup flexibility without sacrificing the refined response expected from the Bilstein B8 8112 series.

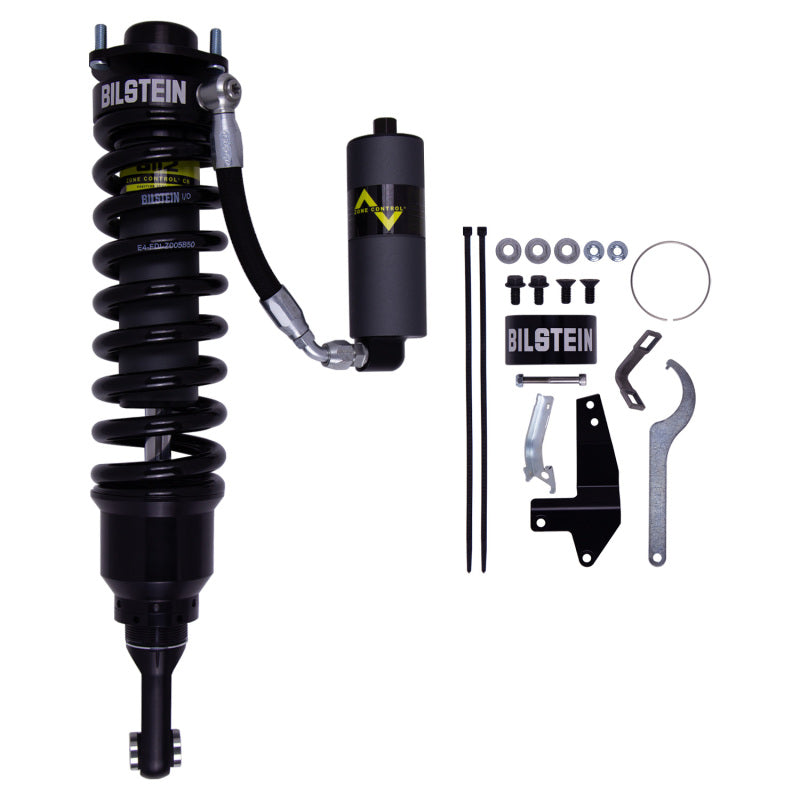

The coilover module includes a remote reservoir that increases oil capacity and helps manage heat during repeated suspension activity. An anodized, bolt-on reservoir chassis mount is included for a secure and clean installation. As a complete front right corner module, the Bilstein B8 8112 ZoneControl CR is intended to simplify installation while providing the performance benefits of a purpose-built monotube coilover system. Confirm vehicle year, model, drivetrain, and suspension configuration before ordering to ensure proper application compatibility.

• ZoneControl® CR: Position-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons
• Triple-piston design balances everyday ride comfort with enhanced control during large suspension inputs
• Remote reservoir helps increase oil capacity and cooling performance
• Threaded spring seat provides application-specific ride-height adjustability

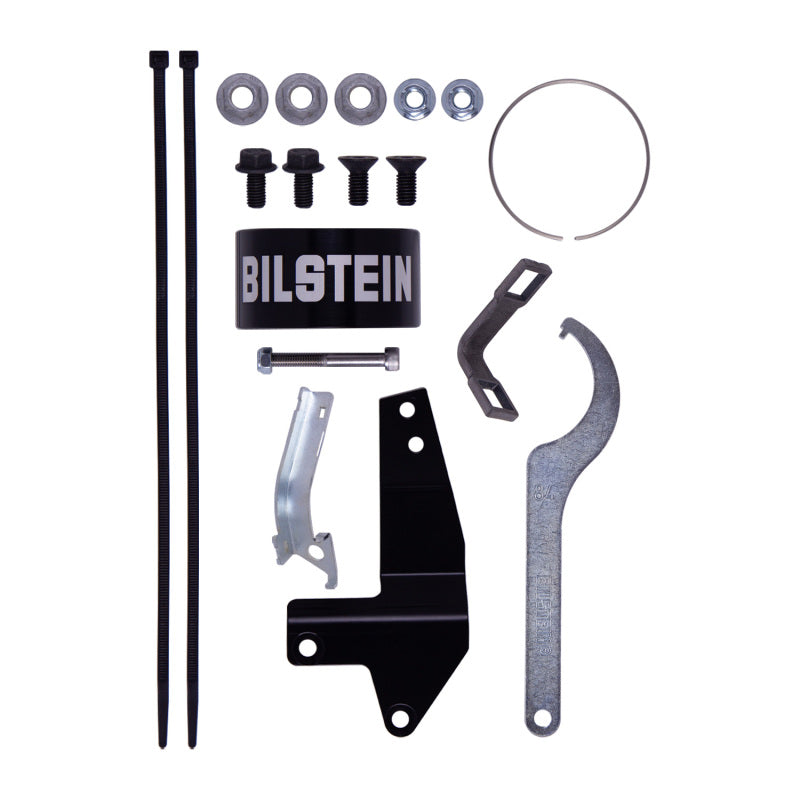

• Includes an anodized, bolt-on reservoir chassis mount

Features:

• ZoneControl® CR: Position-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons

• Triple-piston design balances everyday ride comfort with enhanced control during large suspension inputs

• Remote reservoir helps increase oil capacity and cooling performance

• Threaded spring seat provides application-specific ride-height adjustability

• Includes an anodized, bolt-on reservoir chassis mount

• Front right corner module for select Toyota 4Runner and Lexus GX460 applications

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2011 Lexus GX460
2011 Toyota 4Runner
2012 Lexus GX460
2012 Toyota 4Runner
2013 Lexus GX460
2013 Toyota 4Runner
2014 Lexus GX460
2014 Toyota 4Runner
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
