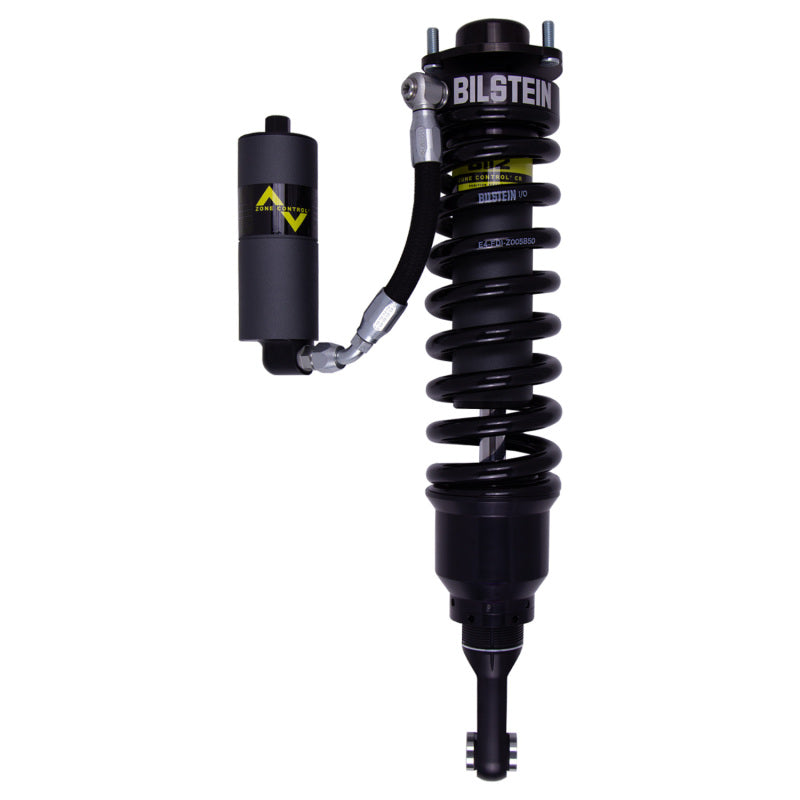

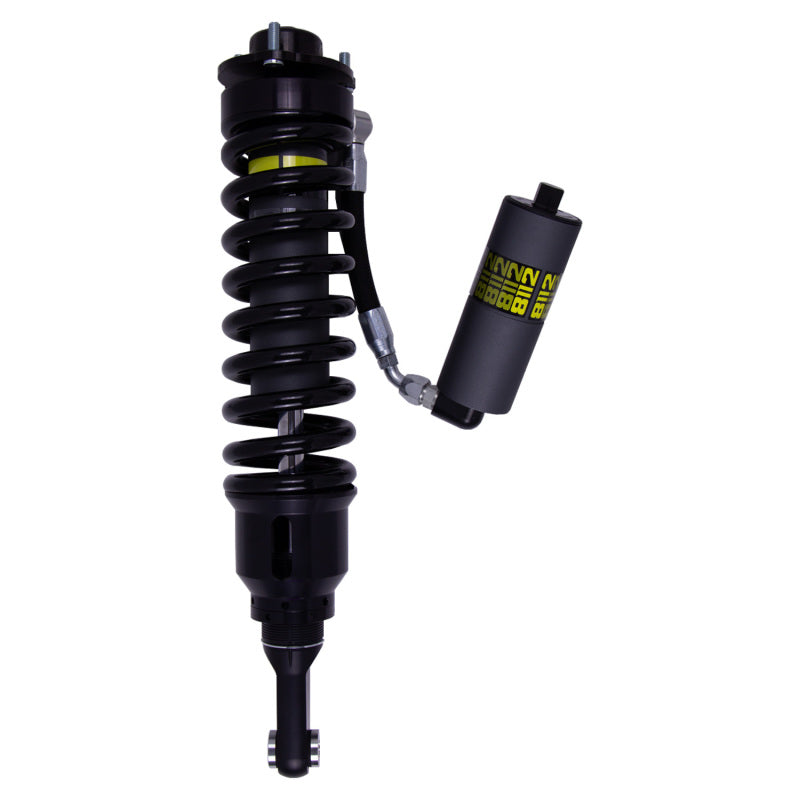

Bilstein B8 8112 ZoneControl CR Front Left Coilover Corner Module, Part Number 41-324158

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. 60mm Front Left Corner Module

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
• 60mm remote reservoir for increased oil capacity and cooling

Upgrade the front suspension of select Toyota 4Runner and Lexus GX460 applications with the Bilstein B8 8112 ZoneControl CR front left corner module. Part number 41-324158 is a direct-fit coilover assembly engineered for light trucks and SUVs, combining adjustable ride height with position-sensitive damping. The result is a suspension system that delivers controlled, comfortable performance during everyday driving while maintaining composure when the vehicle encounters larger suspension inputs.
The ZoneControl CR system uses a triple-piston design with three independent pistons to manage three compression zones and two rebound zones. This position-sensitive damping technology allows the coilover to respond differently across the suspension stroke, helping provide a more comfortable ride over smaller road irregularities and increased control during demanding off-road or heavily loaded conditions. The threaded spring seat allows application-dependent ride-height adjustment, making it possible to fine-tune the vehicle’s stance and suspension setup.
A remote reservoir increases oil capacity and helps improve heat management during extended use. The included bolt-on, anodized reservoir chassis mount provides a secure installation solution while maintaining a clean, application-specific layout. As a complete front left corner module, this Bilstein assembly is designed to simplify installation compared with sourcing individual suspension components. The B8 8112 ZoneControl CR is a suitable performance upgrade for select Toyota 4Runner models from 2010 through 2015 and Lexus GX460 models from 2010 through 2011; verify vehicle application and corner position before ordering.

Features:

• Direct-fit Bilstein B8 8112 ZoneControl CR front left corner module for select Toyota 4Runner and Lexus GX460 applications

• ZoneControl CR position-sensitive damping with three compression zones and two rebound zones

• Triple-piston design balances everyday ride comfort with control during large suspension inputs

• Threaded spring seat provides application-dependent ride-height adjustability

• Remote reservoir increases oil capacity and improves cooling during demanding driving

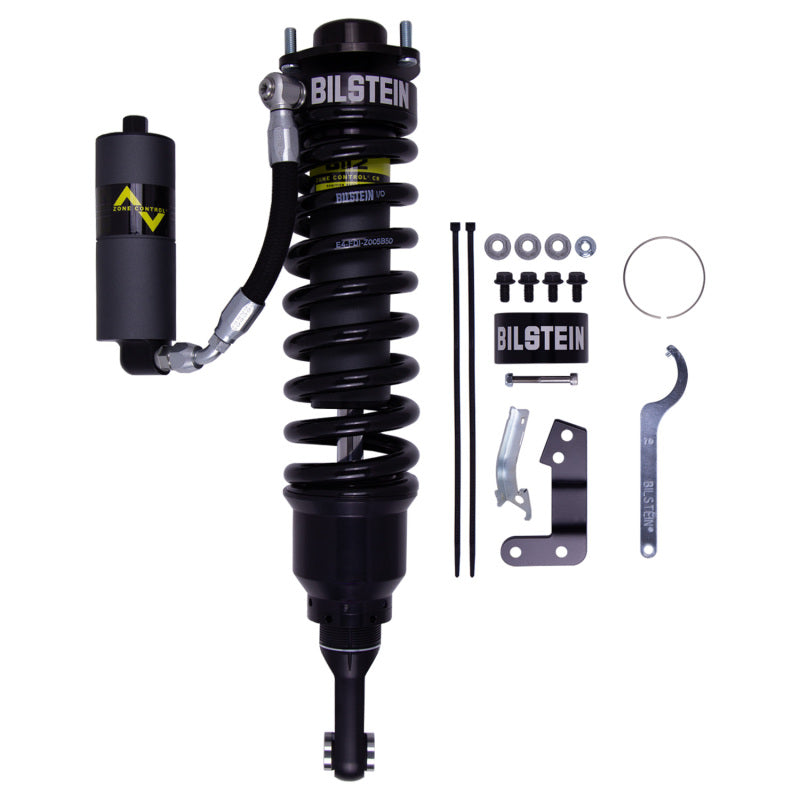

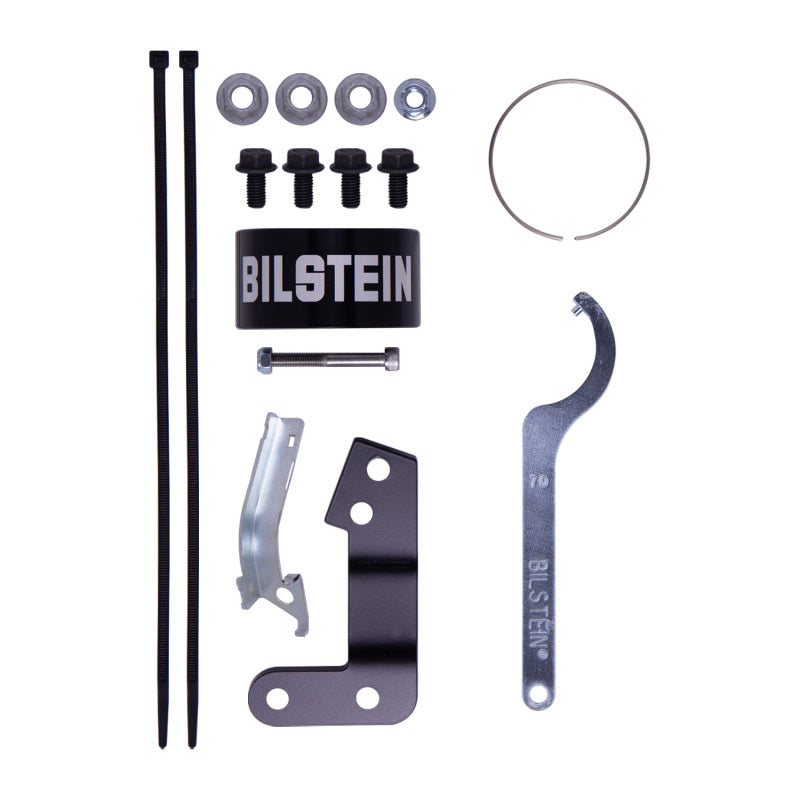

• Includes a bolt-on, anodized reservoir chassis mount

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2011 Lexus GX460
2011 Toyota 4Runner
2012 Lexus GX460
2012 Toyota 4Runner
2013 Lexus GX460
2013 Toyota 4Runner
2014 Lexus GX460
2014 Toyota 4Runner
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
