Bilstein B8 8112 ZoneControl CR DSA+ Front Right Coilover Shock Assembly 41-319581 for Toyota Tacoma

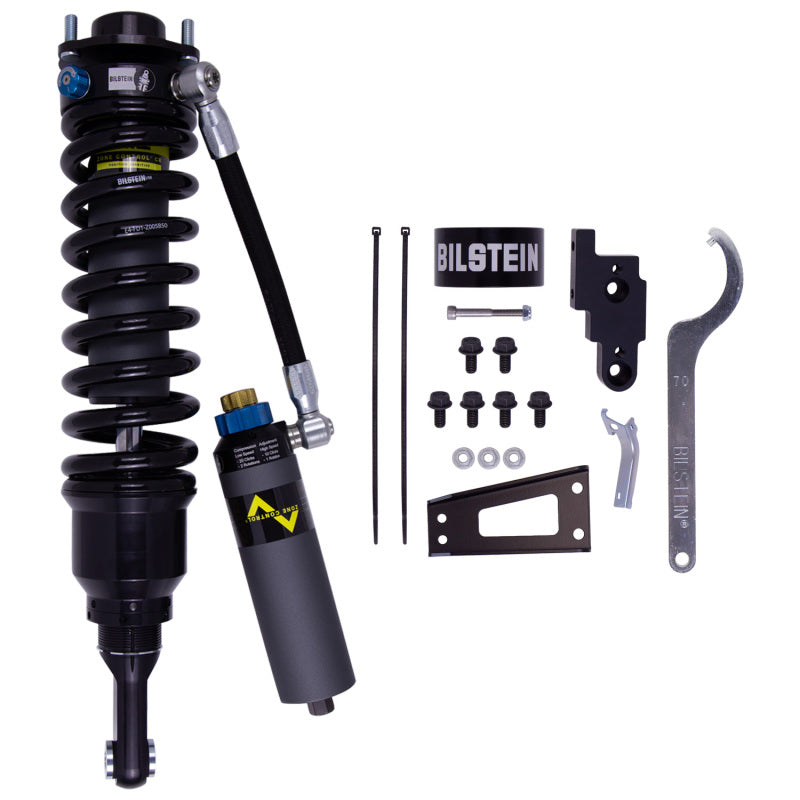

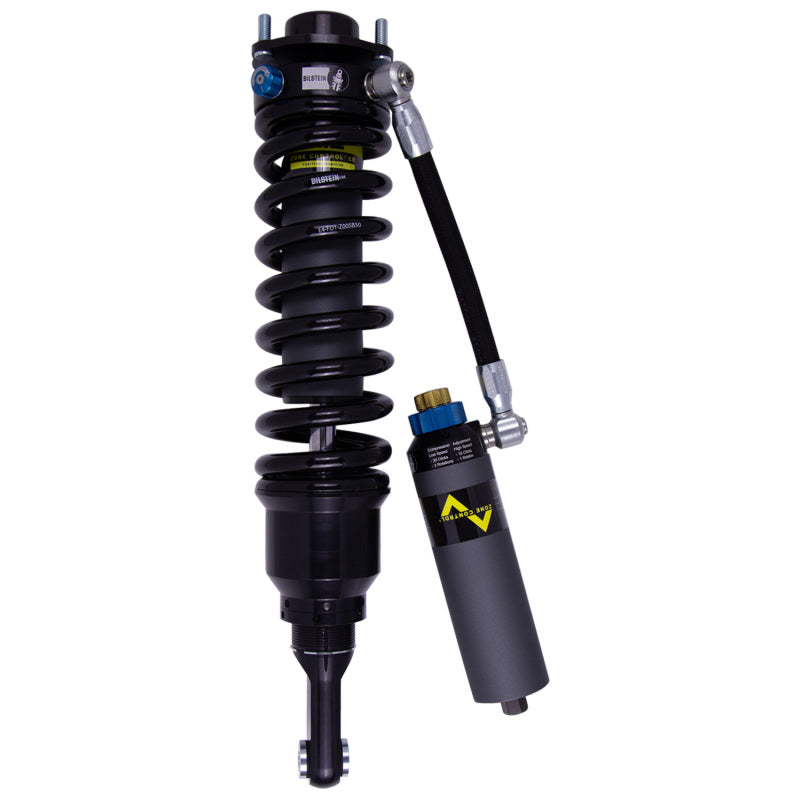

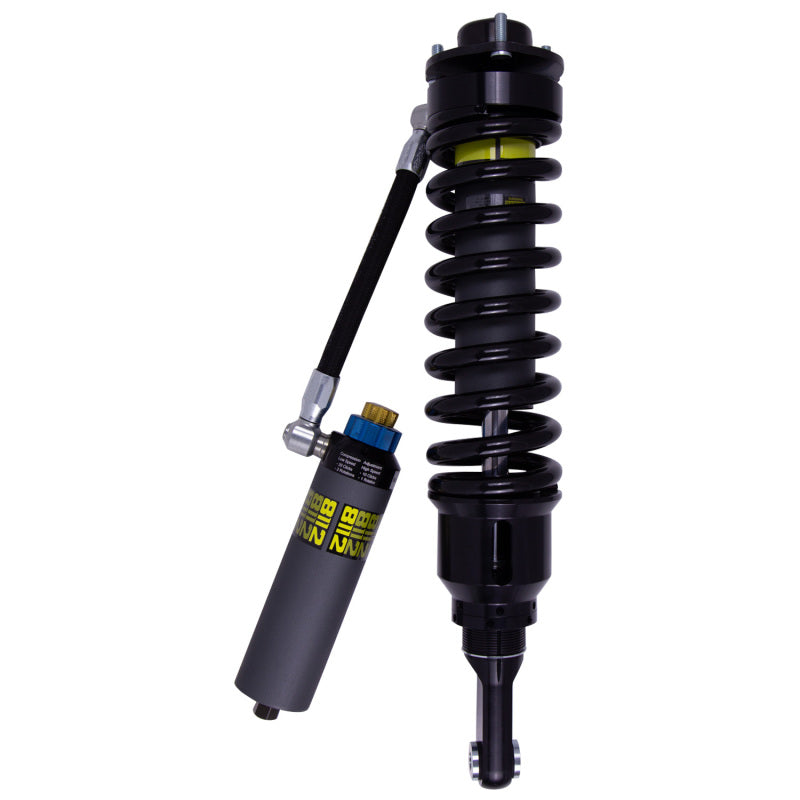

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain. 60mm Front Right Corner Module

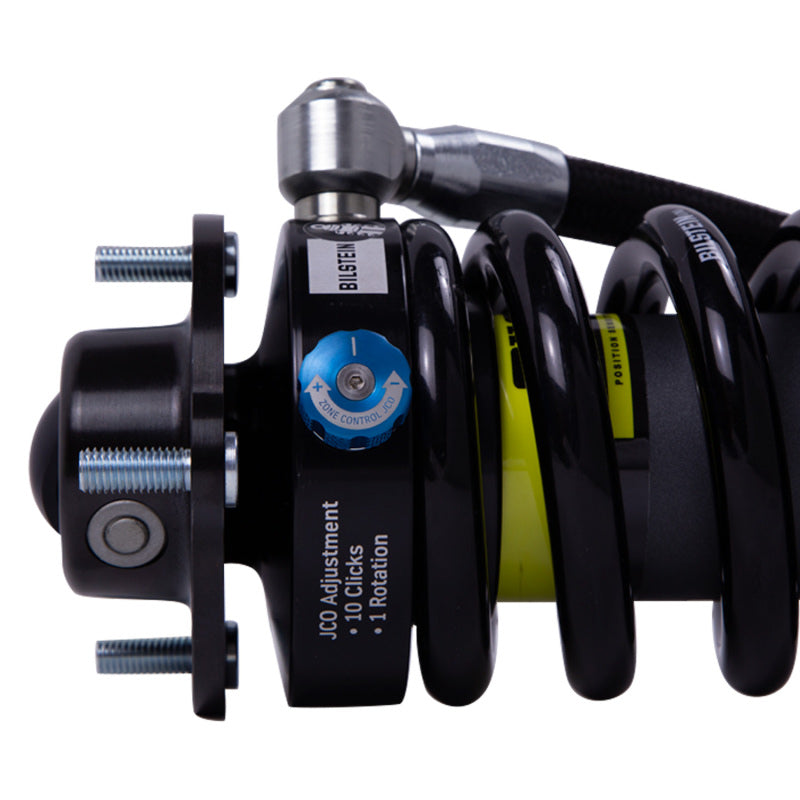

• Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

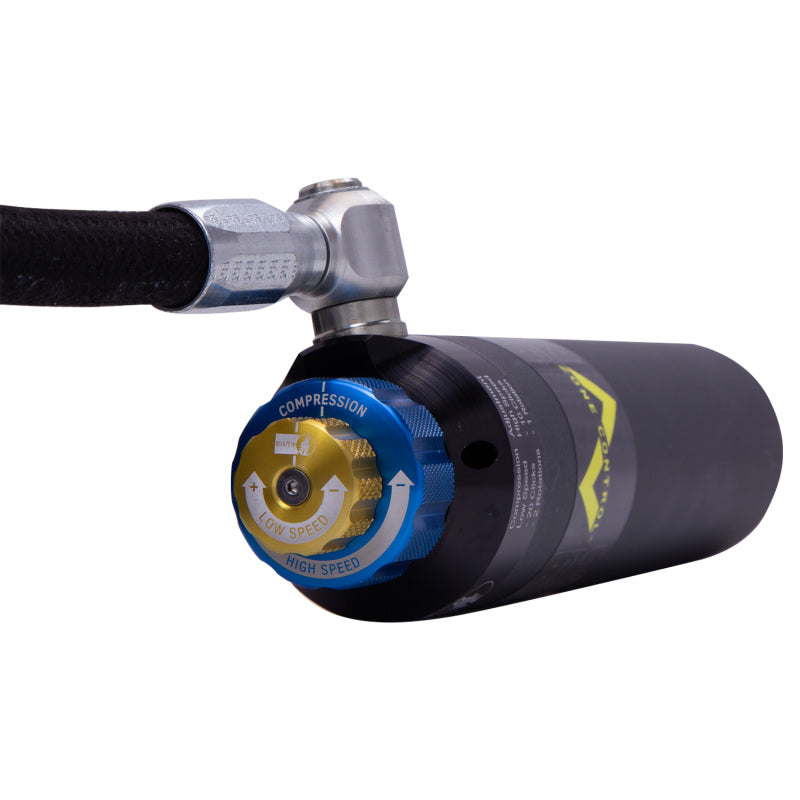

• 60mm remote reservoir for increased oil capacity and cooling

Upgrade the front suspension of select 2005–2022 Toyota Tacoma applications with the Bilstein B8 8112 ZoneControl CR DSA+ front right corner module. Part number 41-319581 is a direct-fit, position-sensitive coilover assembly engineered to provide controlled handling, improved ride comfort, and enhanced suspension performance for both everyday driving and demanding off-road use. The integrated coilover design combines a threaded spring seat for ride-height adjustment with a remote reservoir that supports increased oil capacity and improved cooling during extended or severe driving conditions.
The ZoneControl CR system uses a triple-piston design with position-sensitive damping. Three compression zones and two rebound zones help the shock respond appropriately across varying suspension positions and input speeds. This provides a balanced combination of comfort over smaller irregularities and control during larger suspension movements. Dual Speed Adjustability allows the driver or installer to fine-tune low- and high-speed compression settings using convenient click adjuster knobs, while the adjustable JCO internal hydraulic bump stop helps manage harsh bottom-out events.

• Bilstein B8 8112 ZoneControl CR DSA+ front right coilover module


• Direct-fit suspension upgrade for select Toyota Tacoma applications


• Position-sensitive damping with three compression zones and two rebound zones


• Triple-piston construction for controlled suspension response


• Dual Speed Adjustment for independent low- and high-speed compression tuning


• Adjustable JCO internal hydraulic bump stop for additional bottom-out control


• Remote reservoir supports improved cooling and consistent performance


• Threaded spring seat allows adjustable ride height according to application

The Bilstein B8 8112 system is built for Tacoma owners seeking precise suspension tuning without sacrificing daily-driving usability. Its adjustable damping and position-sensitive valving allow the assembly to be configured for changing terrain, vehicle loads, and driving conditions. This listing is for the front right corner module, so verify vehicle year, suspension configuration, and side-specific fitment before installation.

Features:

• Front right Bilstein B8 8112 ZoneControl CR DSA+ coilover module

• Part number 41-319581

• Direct-fit design for select Toyota Tacoma applications

• Position-sensitive damping with three compression zones and two rebound zones

• Triple-piston design for controlled suspension performance

• Dual Speed Adjustment for low- and high-speed compression

• Adjustable JCO internal hydraulic bump stop

• Remote reservoir for increased cooling capacity

• Threaded spring seat for application-specific ride-height adjustment

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
