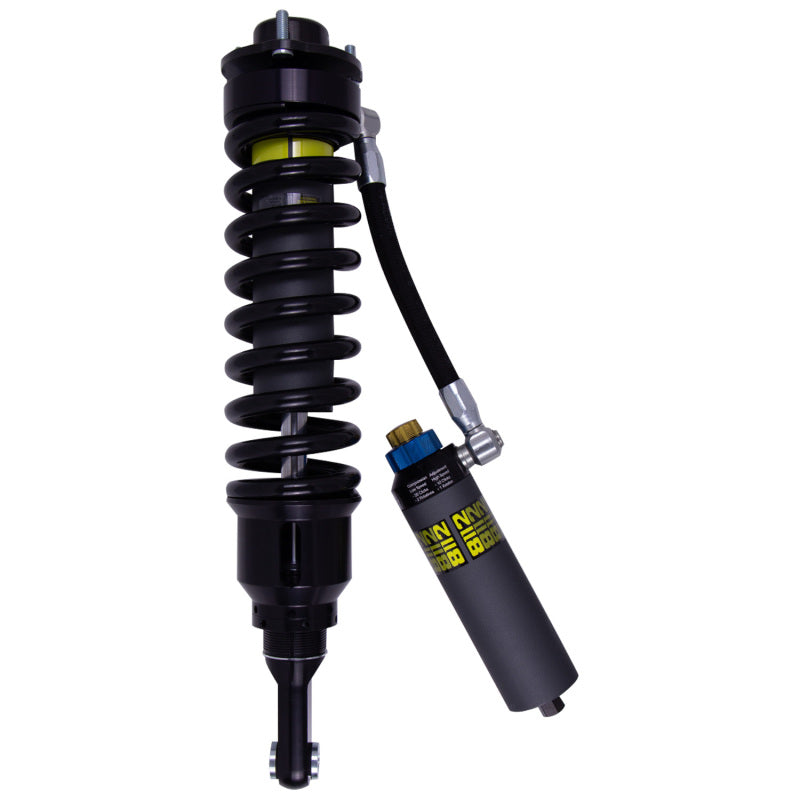

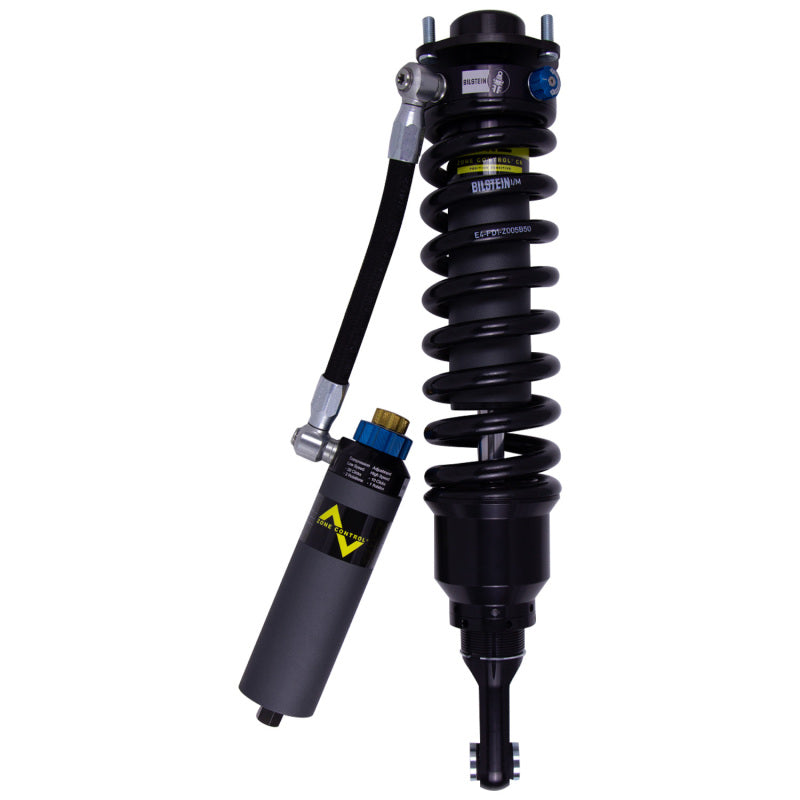

Bilstein B8 8112 ZoneControl CR DSA+ Front Left Coilover Assembly 41-319574 for Toyota Tacoma

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain. 60mm Front Left Corner Module

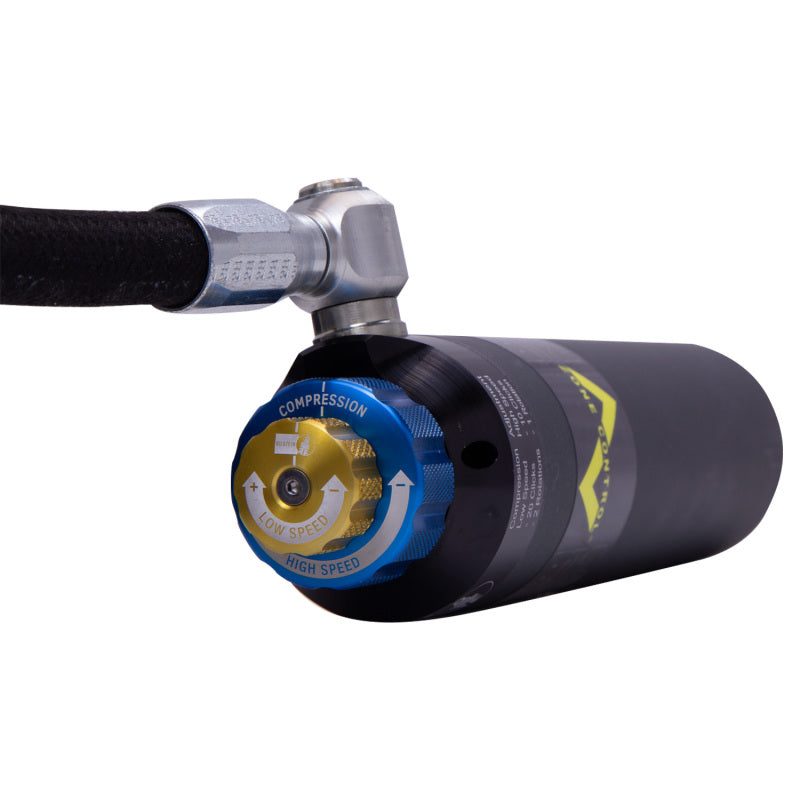

• Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• 60mm remote reservoir for increased oil capacity and cooling

Upgrade the front suspension of your compatible Toyota Tacoma with the Bilstein B8 8112 ZoneControl CR DSA+ front left corner module, part number 41-319574. This direct-fit coilover shock and spring assembly is engineered for light trucks and SUVs, combining position-sensitive damping with user-adjustable compression control. The result is improved ride quality for daily driving and enhanced suspension control when navigating rough roads, demanding trails, or large suspension inputs.
The Bilstein ZoneControl CR system uses a triple-piston design to provide three stages of compression valving and two stages of rebound valving. This position-sensitive setup adapts damping performance according to suspension position, helping maintain comfort through normal travel while delivering increased control during more aggressive suspension movement. Click adjuster knobs provide precise Dual Speed Adjustment for both low-speed and high-speed compression, allowing drivers to tailor the shock response to changing terrain, vehicle loads, and driving conditions. An adjustable JCO internal hydraulic bump stop further helps manage suspension compression near the end of travel.

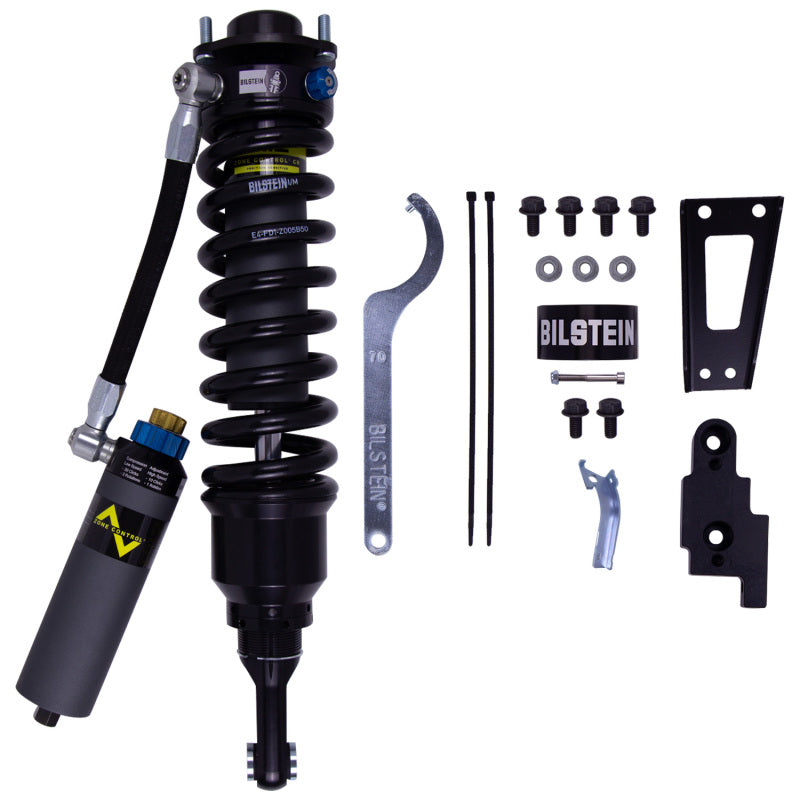

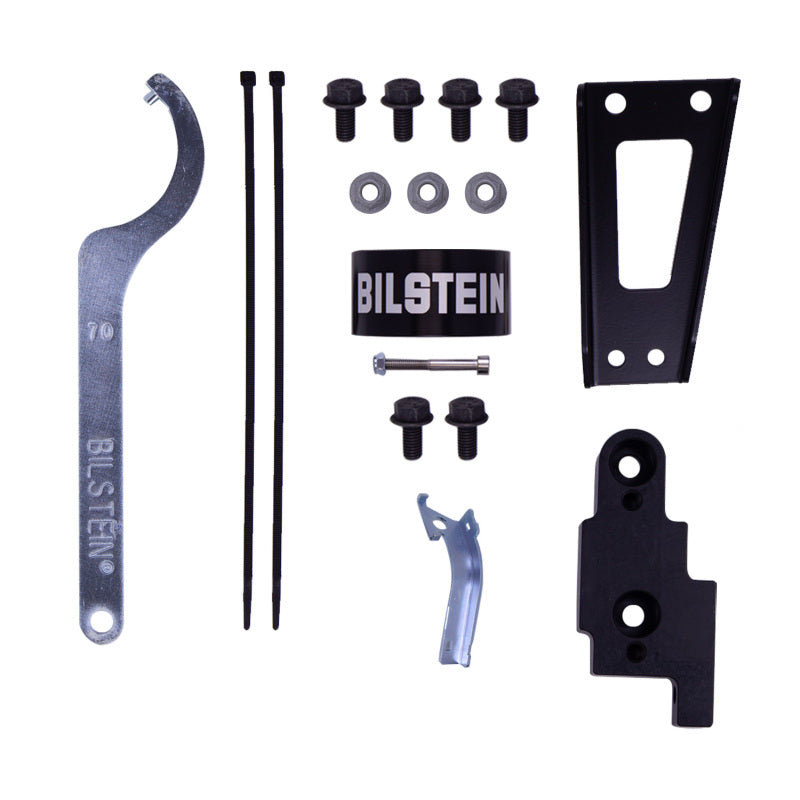

This Bilstein B8 8112 assembly includes a remote reservoir to support increased oil capacity and improved heat management during extended use. The included bolt-on, anodized reservoir chassis mount provides a secure installation solution while maintaining a clean, durable appearance. A threaded spring seat allows ride-height adjustment based on the vehicle and application, helping support suspension setup and handling preferences. Designed for the front left corner, this assembly fits select 2005, 2006, 2007, and 2010-2016 Toyota Tacoma applications. Verify vehicle year, suspension configuration, and side-specific fitment before ordering.

Features:

• Direct-Fit Design: Engineered as a front left corner coilover shock and spring assembly for select Toyota Tacoma applications.

• ZoneControl CR Damping: Uses position-sensitive damping with three compression zones and two rebound zones managed by three independent pistons.

• Dual Speed Adjustment: Click adjuster knobs provide precise control of low-speed and high-speed compression settings.

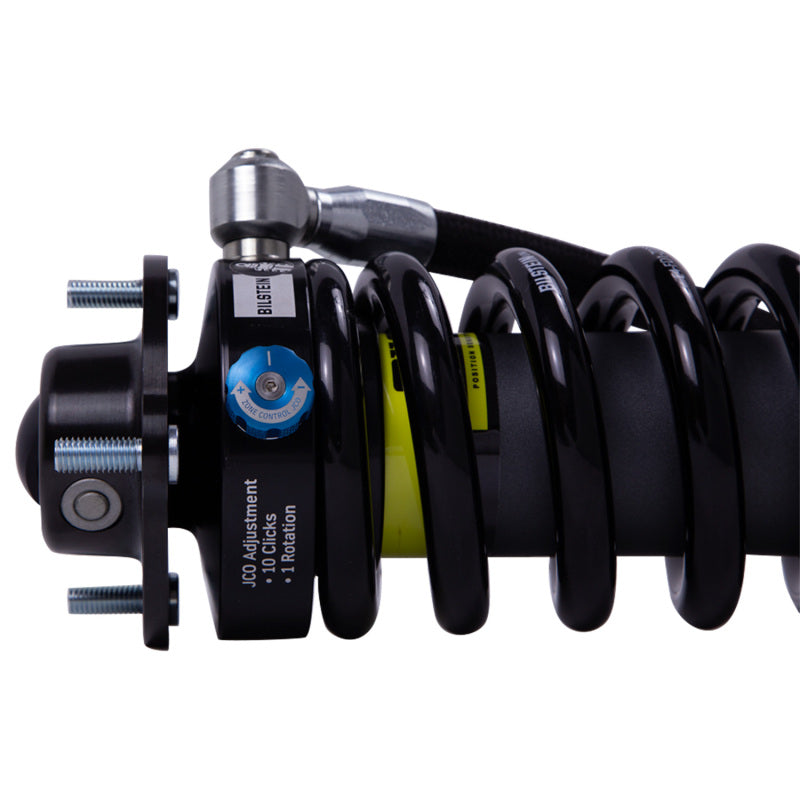

• Adjustable JCO Bump Stop: Internal hydraulic bump stop helps manage suspension compression during demanding impacts.

• Remote Reservoir: Supports increased oil capacity and improved cooling for consistent performance during extended driving.

• Ride Height Adjustment: Threaded spring seat allows application-specific ride-height tuning.

• Vehicle Fitment: Designed for select 2005, 2006, 2007, and 2010-2016 Toyota Tacoma models.

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
