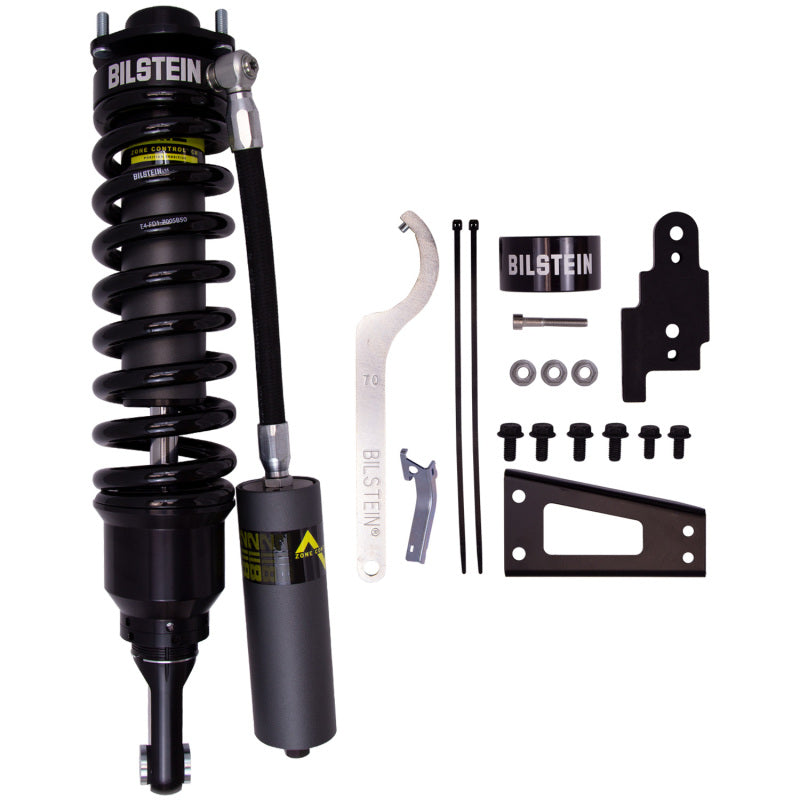

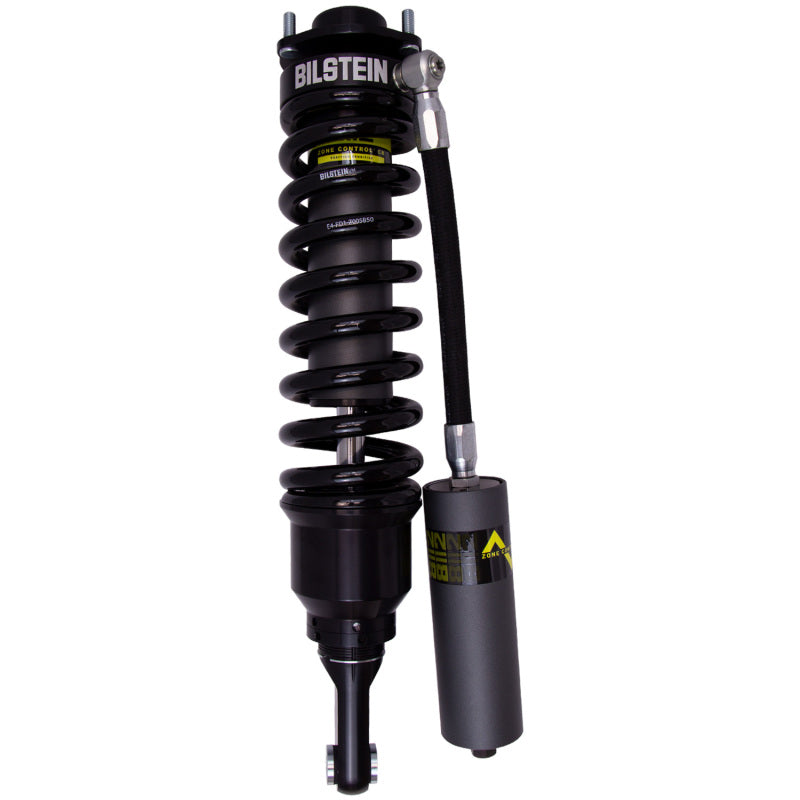

Bilstein 41-322697 B8 8112 ZoneControl CR Front Right Coilover Module for 2005-2022 Toyota Tacoma

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. 60mm Front Right Corner Module

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
• 60mm remote reservoir for increased oil capacity and cooling

Upgrade the front suspension of your Toyota Tacoma with the Bilstein B8 8112 ZoneControl CR front right corner module, part number 41-322697. Designed as a direct-fit coilover solution for select 2005-2022 Toyota Tacoma applications, this module combines adjustable ride height with position-sensitive damping to improve ride quality, handling, and control. It is engineered for light trucks and SUVs that require dependable performance during daily driving as well as demanding off-road and heavy-impact conditions.
The ZoneControl CR system uses a triple-piston design to provide three stages of compression valving and two stages of rebound valving. This position-sensitive damping technology allows the coilover to respond differently throughout the suspension travel, helping maintain a comfortable ride over smaller inputs while delivering controlled suspension performance during larger impacts. The threaded spring seat allows ride height adjustment to help accommodate application-specific setup requirements and vehicle modifications.

• ZoneControl® CR: Position-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons


• Triple-piston design: Balances everyday ride comfort with controlled performance during large suspension inputs


• Remote reservoir: Helps increase oil capacity and cooling for consistent damping performance during demanding use


• Adjustable ride height: Threaded spring seat supports application-specific suspension setup and tuning


• Direct-fit design: Front right corner module engineered for compatible Toyota Tacoma applications

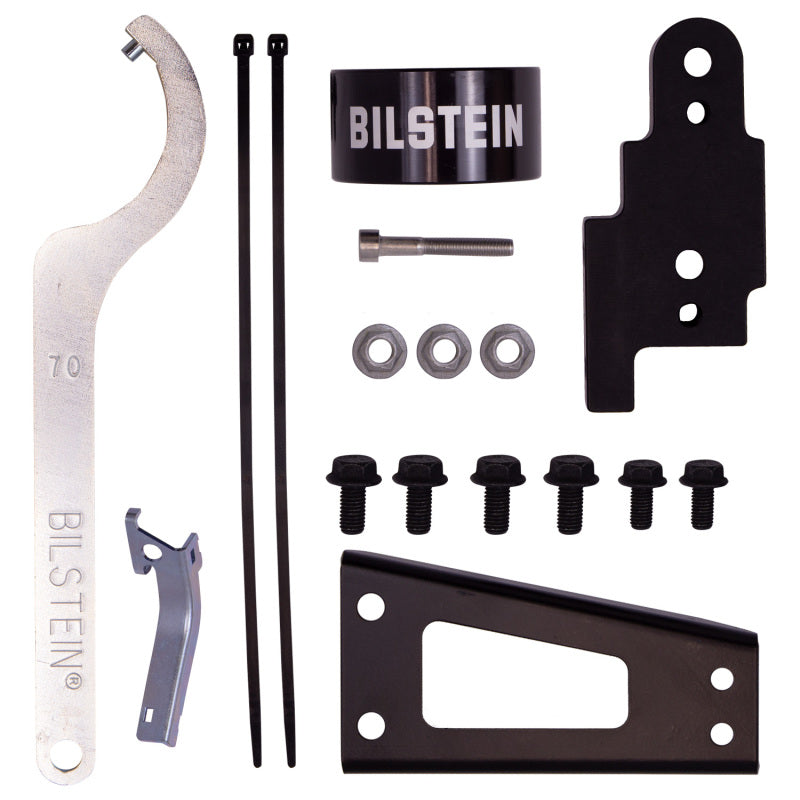

A remote reservoir and included bolt-on anodized chassis mount support improved heat management while keeping the installation organized and secure. As part of the Bilstein B8 8112 series, this coilover module is built for drivers who want enhanced suspension control without sacrificing everyday drivability. Verify vehicle application and corner position before installation to ensure proper fitment.

Features:

• ZoneControl® CR: Position-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons

• Triple-piston design: Balances everyday ride comfort with controlled performance during large suspension inputs

• Remote reservoir: Helps increase oil capacity and cooling for consistent damping performance during demanding use

• Adjustable ride height: Threaded spring seat supports application-specific suspension setup and tuning

• Direct-fit design: Front right corner module engineered for compatible Toyota Tacoma applications

• Chassis mount: Includes a bolt-on anodized reservoir mount for secure installation

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
