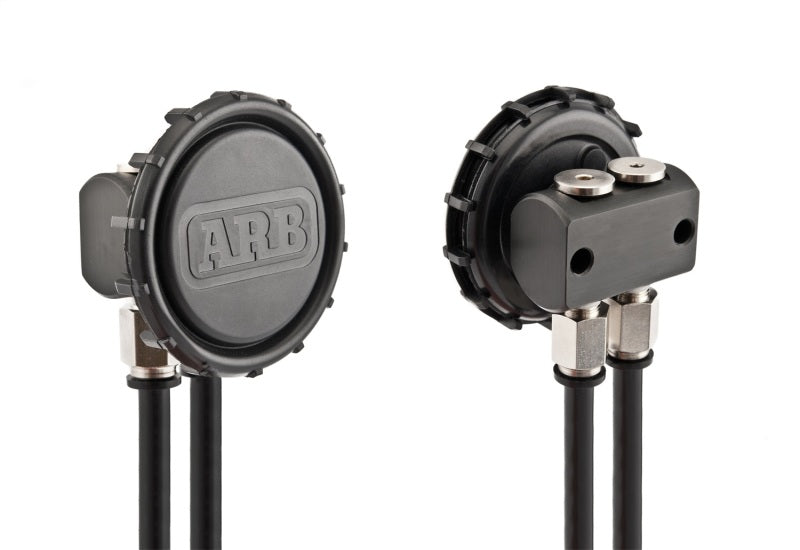

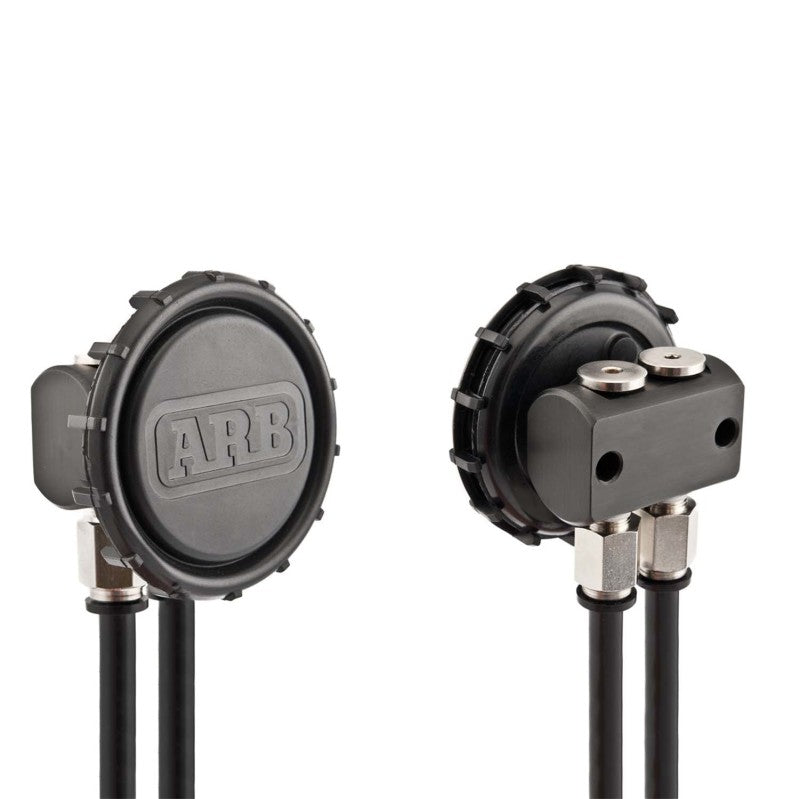

ARB Differential Breather Kit

A differential/axle breather serves the important purpose on a 4WD vehicle of venting the air pressure in drivetrain assemblies such as the differential, transmission and transfer cases. Many drivetrain assemblies are fitted with a breather from the factory. These factory breathers are usually a one-way valve mounted directly to the housing or remotely on a short tube. There are many short comings to this style and the ARB Differential Breather Kit is designed to eliminate these by providing a high flow, zero back pressure, zero vacuum breather system. The kit is intended to replace your factory breathers and contains enough fittings and tubing to connect at least two drivetrain assemblies. More tubing and push-in fittings can be purchased separately to connect up to four assemblies to the central manifold. ARB Differential Breather Kit; Includes Manifold; 4 Ports To Connect Up To 4 Breather Lines; Air Filter Port; Air Filter Assy; Push In Fittings; Plugs; Tubing; Screws; Cable Ties;

• 4 Axle Breather Ports Allow For 1 - 4 Breather Lines
• Install In Virtually Any Location
• Splash Resistant Air Filter
• Anodized Billet Aluminum
• Compact

The ARB 170112 Differential Breather Kit is designed to improve ventilation for 4WD drivetrain assemblies, including differentials, transmissions, and transfer cases. Factory breathers commonly use a one-way valve mounted directly to the housing or connected through a short tube. These arrangements can restrict airflow and may allow pressure or vacuum to build as drivetrain temperatures change. This ARB breather system replaces those limitations with a high-flow, zero-back-pressure, zero-vacuum design for more consistent drivetrain ventilation.
The kit includes a central manifold with four breather ports, allowing you to connect from one to four drivetrain assemblies. It includes enough tubing and fittings to connect at least two assemblies, while additional tubing and push-in fittings can be purchased separately when connecting more components. The manifold can be installed in virtually any suitable location, helping simplify routing and organization during a custom 4WD installation. Included hardware consists of push-in fittings, plugs, tubing, screws, cable ties, and an air filter assembly.
Constructed from anodized billet aluminum, the compact ARB manifold is built for dependable service in demanding off-road environments. A splash-resistant air filter helps protect the system while allowing the assemblies to vent properly. The kit is suitable for replacing factory differential breather arrangements on select 1985–1989 Toyota 4Runner applications, including the listed model years. Confirm vehicle-specific routing and installation requirements before installation to ensure the system is configured correctly for your drivetrain.

Features:

• Four breather ports support connection of one to four drivetrain breather lines

• High-flow design provides zero back pressure and zero vacuum

• Compact manifold can be installed in virtually any suitable location

• Splash-resistant air filter helps protect the breather system

• Anodized billet aluminum manifold provides durable construction

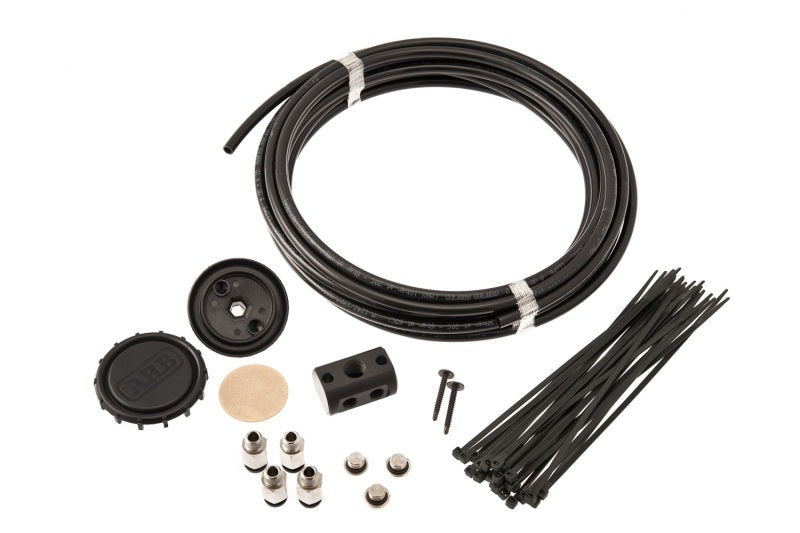

• Includes air filter assembly, push-in fittings, plugs, tubing, screws, and cable ties

Compatible With
1984 Toyota 4Runner
1985 Toyota 4Runner
1986 Toyota 4Runner
1987 Toyota 4Runner
1988 Toyota 4Runner
1989 Toyota 4Runner
1990 Toyota 4Runner
1991 Toyota 4Runner
1992 Toyota 4Runner
1993 Toyota 4Runner
1994 Toyota 4Runner
1995 Toyota 4Runner
1995 Toyota Tacoma
1996 Toyota 4Runner
1996 Toyota Tacoma
1997 Toyota 4Runner
1997 Toyota Tacoma
1998 Toyota 4Runner
1998 Toyota Tacoma
1999 Toyota 4Runner
1999 Toyota Tacoma
2000 Toyota 4Runner
2000 Toyota Tacoma
2000 Toyota Tundra
2001 Toyota 4Runner
2001 Toyota Tacoma
2001 Toyota Tundra
2002 Toyota 4Runner
2002 Toyota Tacoma
2002 Toyota Tundra
2003 Toyota 4Runner
2003 Toyota Tacoma
2003 Toyota Tundra
2004 Toyota 4Runner
2004 Toyota Tacoma
2004 Toyota Tundra
2005 Toyota 4Runner
2005 Toyota Tacoma
2005 Toyota Tundra
2006 Toyota 4Runner
2006 Toyota Tacoma
2006 Toyota Tundra
2007 Toyota 4Runner
2007 Toyota FJ Cruiser
2007 Toyota Tacoma
2007 Toyota Tundra
2008 Toyota 4Runner
2008 Toyota FJ Cruiser
2008 Toyota Tacoma
2008 Toyota Tundra
2009 Toyota 4Runner
2009 Toyota FJ Cruiser
2009 Toyota Tacoma
2009 Toyota Tundra
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2010 Toyota Tacoma
2010 Toyota Tundra
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2011 Toyota Tacoma
2011 Toyota Tundra
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2012 Toyota Tacoma
2012 Toyota Tundra
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2013 Toyota Tacoma
2013 Toyota Tundra
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2014 Toyota Tacoma
2014 Toyota Tundra
2015 Toyota 4Runner
2015 Toyota Tacoma
2015 Toyota Tundra
